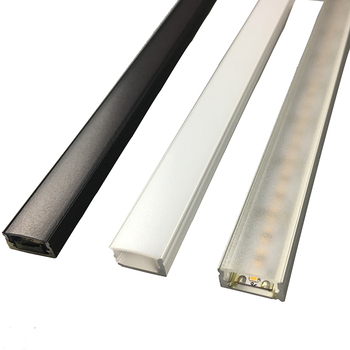

SM2310 Surface Mounted LED Aluminum Profile with Soft and Uniform Lighting for Walls, Bookshelves, and Cabinets
- High-quality anodized aluminium.
- Compact surface-mount profile for walls, bookshelves, cabinets and furniture.
- PMMA opal diffuser creates soft, uniform lighting and reduces glare.
- Recyclable and environmentally friendly materials.
Product Details
The SM2310 surface mounted LED aluminum profile is designed for clean, elegant and versatile linear lighting installations. Its slim and lightweight structure makes it ideal for shelves, bookshelves, cabinets, furniture, walls and other flat surfaces. It provides a neat and modern lighting solution for both residential and commercial interiors.
The LED channel is made from high-quality extruded aluminum with an anodized finish, offering excellent durability, corrosion resistance and heat dissipation. Its compact design allows for easy surface mounting while maintaining a sleek and unobtrusive appearance. The profile is equipped with a high-quality PMMA opal diffuser, which effectively scatters light to create soft, smooth and uniform illumination while reducing glare and visual discomfort. The diffuser also helps provide comfortable lighting for everyday use.
The inner width is 20mm, allowing for a maximum led strip light width of 20mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | SM2310 |
|---|---|
| Size (W*H) | W23.5*H11mm |
| Product type | Surface Mounted aluminum profile |
| Profile material | 6063-T5 extruded aluminum |
| Surface finish | Anodized Silver/black/powder coating black |
| Profile length | 2m, 2.5m, 3m and customized length |
| Inner width | 20mm |
| Max width of strip lights | 20mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |

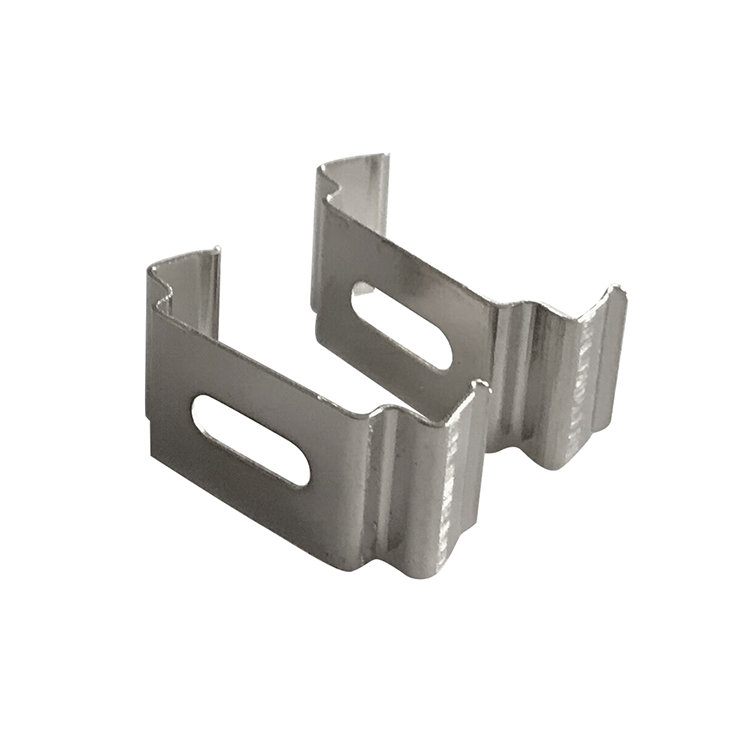

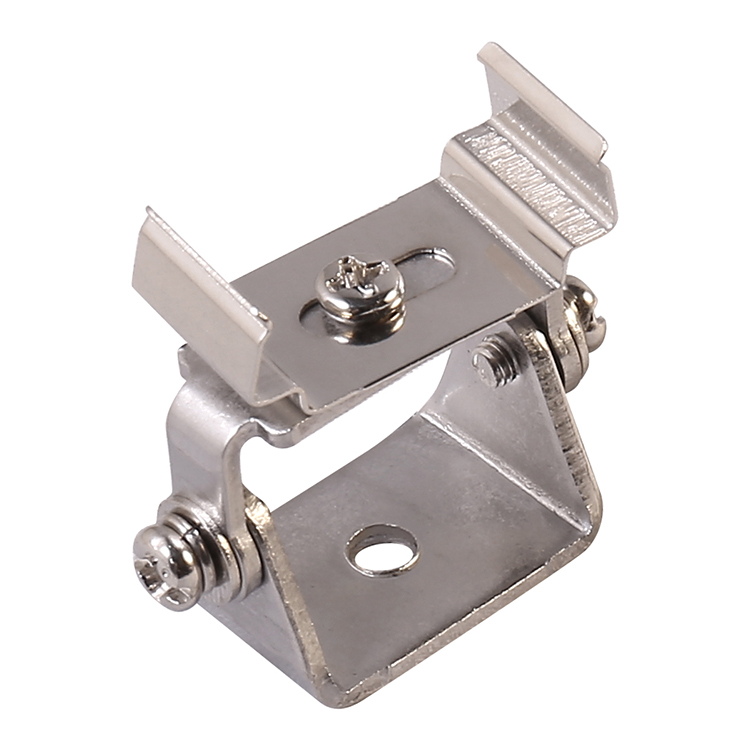

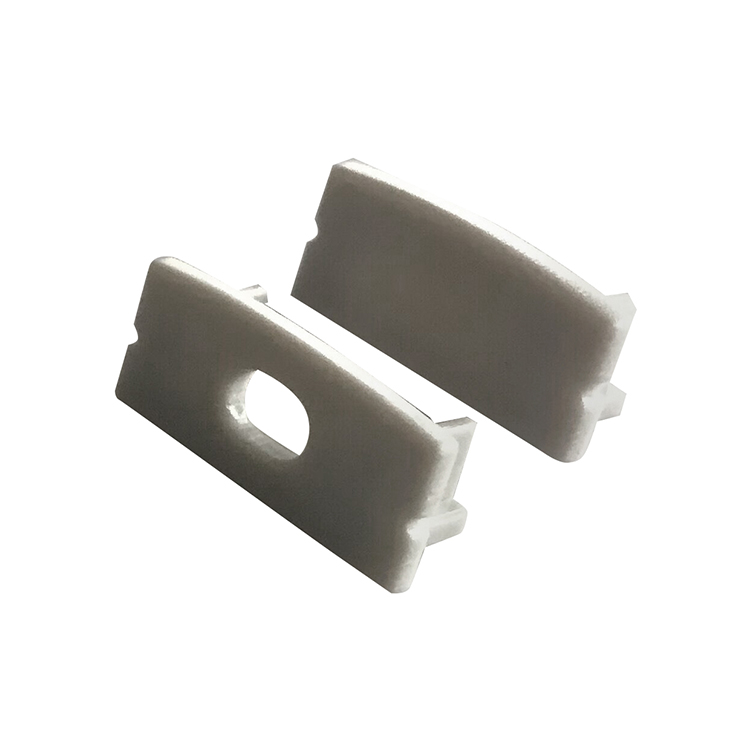

| End caps with/without wire holes included, metal mounting clips included | |
| Installation | Surface Mounted |
| Application | shelves, bookshelves, cabinets, furniture, walls and other flat surfaces. |
| Certifications | CE, RoHS |
| Warranty | 5 years |

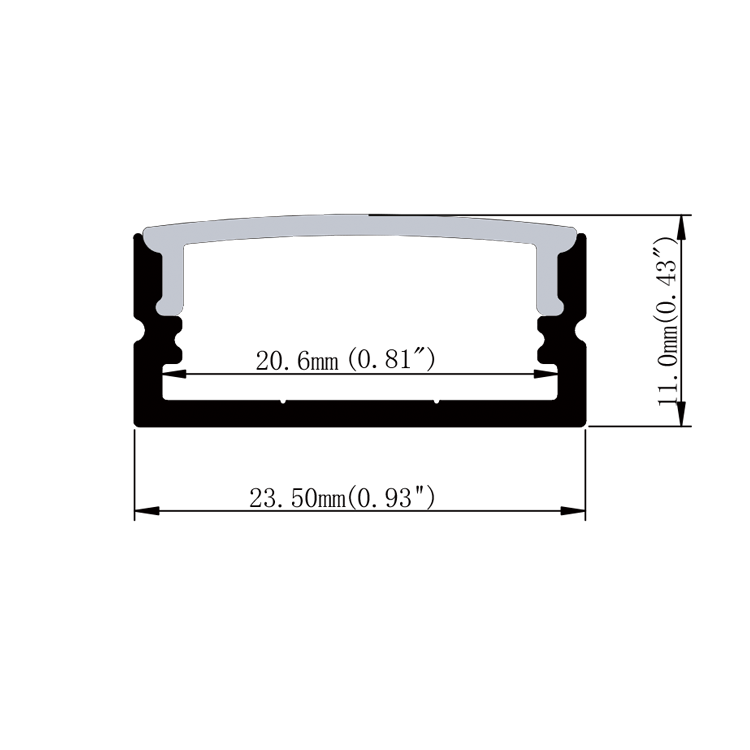

Product Drawings
FAQ
what’s the length in stock?
we keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
what is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
yes, we provide free samples in short pieces.
