SM2309 Surface Mounted LED Aluminum Profile with Side-Emitting Design for Slim, Glare-Free Lighting
Product Details
The SM2309 surface mounted LED aluminum profile is designed for elegant and versatile linear lighting installations. Ideal for bookshelves, display cabinets, furniture, walls and other interior applications, it is an excellent choice for creating soft and indirect lighting effects.
The LED channel is made from premium-quality 6063-grade extruded aluminum with an anodized finish, ensuring excellent durability and heat dissipation. Featuring a unique side-emitting design, the profile provides a slimmer and more elegant lighting appearance, making it ideal for applications where space and aesthetics matter.
The profile is equipped with a high-quality PMMA opal diffuser, which provides soft, uniform and comfortable illumination while effectively reducing visible LED spots and glare. It creates beautiful indirect lighting effects, enhancing the atmosphere of furniture, bookshelves and display spaces.
Designed for easy surface mounting, the SM2309 comes with mounting clips for convenient and secure installation. End caps are also available to provide a neat and professional finish.
The inner width is 5mm, allowing for a maximum led strip light width of 5mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | SM2309 |
|---|---|
| Size (W*H) | W10*H21mm |
| Product type | Surface-mounted aluminum profile |
| Profile material | 6063-T5 extruded aluminum |
| Surface finish | Anodized Silver/black/powder coating black |
| Profile length | 2m, 2.5m, 3m and customized length |
| Inner width | 5mm |
| Max width of strip lights | 5 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |
| End caps with/without wire holes included, metal mounting clips included | |
| Installation | Surface-mounted |
| Application | Bookshelves, display cabinets, walls, furniture and interior decoration. etc |
| Certifications | CE, RoHS |
| Warranty | 5 years |

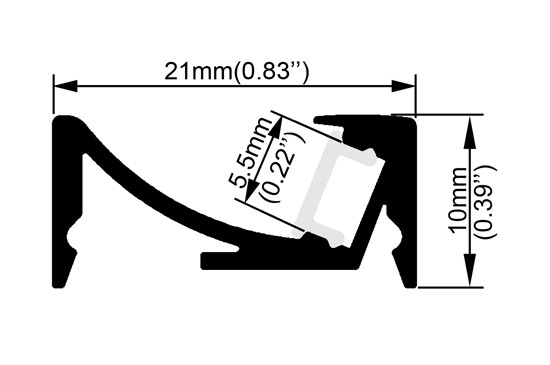

Product Drawings
FAQ
what’s the length in stock?
we keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
what is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
yes, we provide free samples in short pieces.
