SM1919 Surface Mounted LED Aluminum Profile with PMMA Opal Diffuser for Soft and Glare-Free Lighting

The slim anodized aluminum profile for surface-mounted LED strip installations. Made from high-quality anodized aluminum for excellent durability and corrosion resistance. Its compact design and low-profile structure make it ideal for flat surfaces such as walls, bookshelves, cabinets and furniture. Suitable for various LED lighting applications, with multiple diffuser options available to meet different lighting needs. Easy surface mounting, cut to length, and suitable for both residential and commercial lighting projects.

Product Details

The SM1919 surface mounted LED aluminum profile is designed for clean, sleek and versatile linear lighting installations. Its compact design with a slim width and low height makes it ideal for installation in limited spaces and directly onto flat surfaces. Perfect for shelves, bookcases, cabinets, furniture, walls and other decorative lighting applications.

The LED channel is made from premium-quality anodized aluminum, offering excellent durability, corrosion resistance and long-lasting performance. Its compact structure provides a neat and modern appearance while ensuring efficient heat dissipation for LED strips. The profile is equipped with a high-quality PMMA opal diffuser, which provides soft, uniform and comfortable light distribution while reducing glare. Different diffuser options are available to meet various lighting requirements and decorative preferences.

The SM1919 is designed for easy surface mounting, making it a convenient solution for a wide range of indoor lighting projects. Its compact size and elegant appearance make it ideal for furniture lighting, cabinet lighting, shelving illumination and modern architectural decorative lighting.
The inner width is 16mm, allowing for a maximum led strip light width of 16mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.

Specifications

Model AM1919
Size (W*H) W19.5*H20.3mm
Product type Surface Mounted aluminum profile
Profile material 6063-T5 extruded aluminum
Surface finish Anodized Silver/black/powder coating black
Profile length 2m, 2.5m, 3m and customized length
Inner width 16.9mm
Max width of strip lights 16 mm
Diffusers PMMA opal/frosted/clear/PC diffused

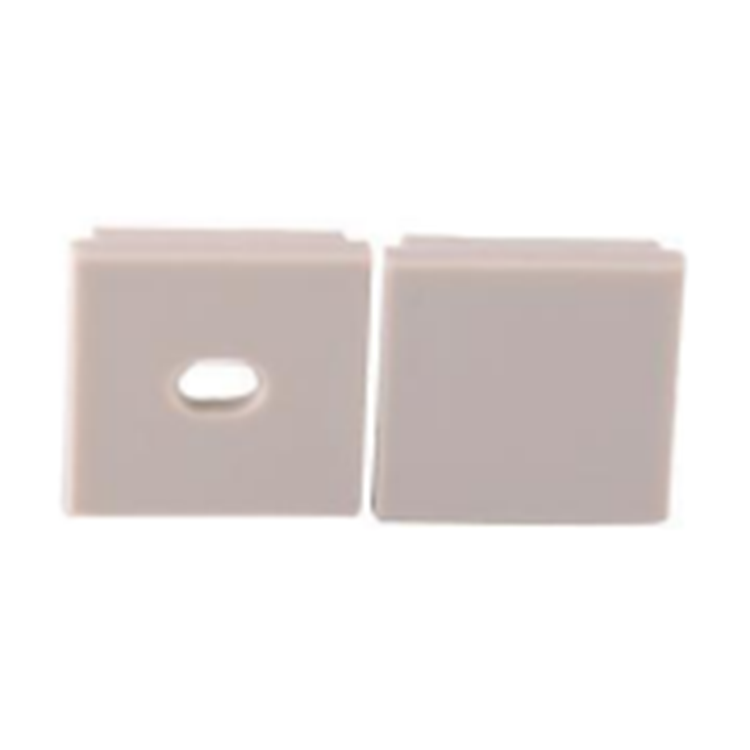

End caps with/without wire holes included, metal mounting clips included
Installation Surface Mounted
Application shelves, bookcases, cabinets, furniture, walls
Certifications CE, RoHS
Warranty 5 years

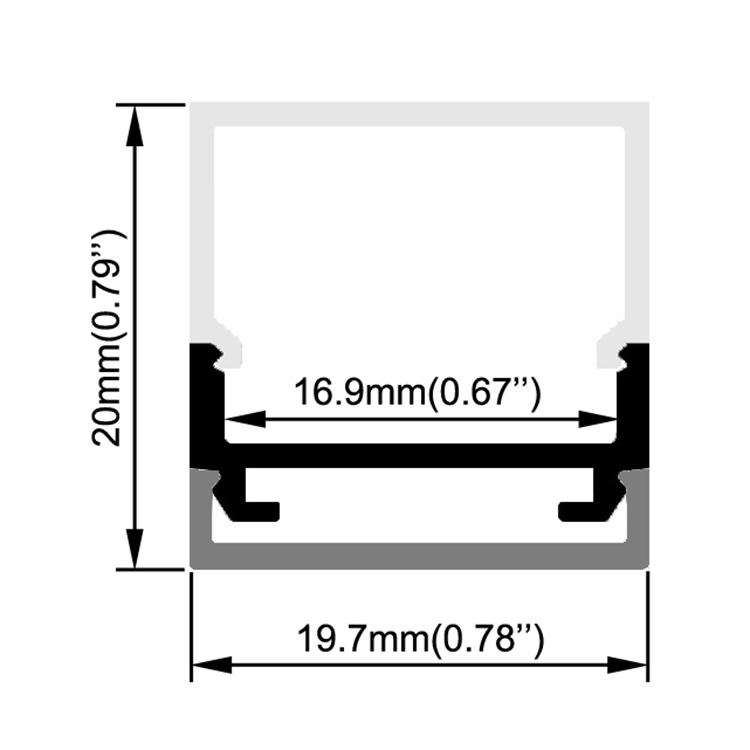

Product Drawings

SM1919 LED aluminum profile detail image 1

SM1919 LED aluminum profile detail image 2

SM1919 LED aluminum profile detail image 3

FAQ

what’s the length in stock?

we keep 2m, 3m in stock. We can do max. 6meters.

Can you do customized design?

yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.

Can we have the aluminum channel in other colors?

yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.

Does your company assemble the led strips and drivers?

yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.

what is the delivery time?

3-7 days for small order, 15-30 days for volume order.

What’s your MOQ?

3-7 days for small order, 15-30 days for volume order.

Do you provide free samples?

yes, we provide free samples in short pieces.
