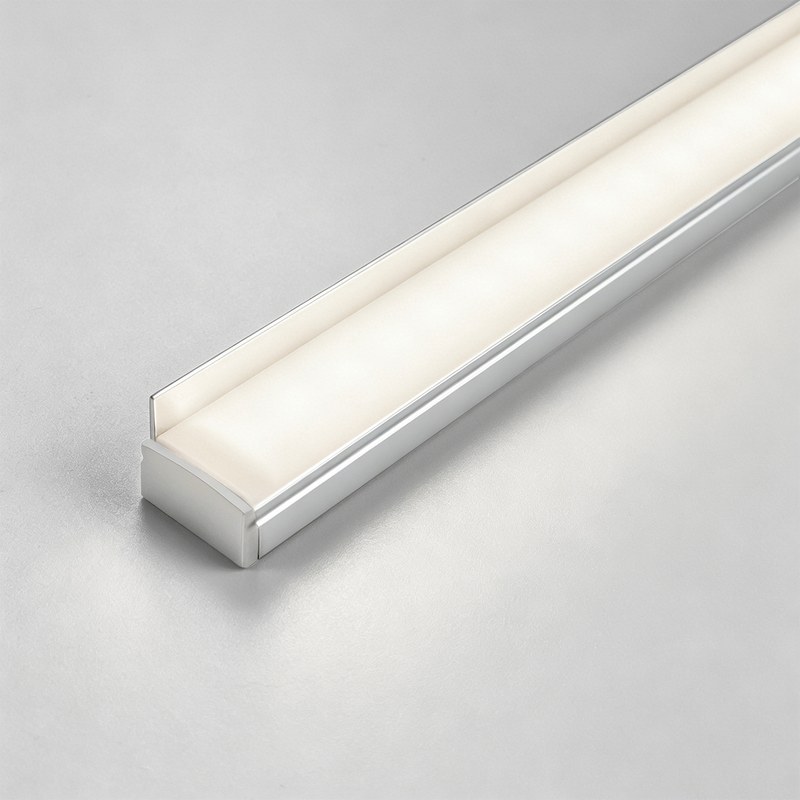

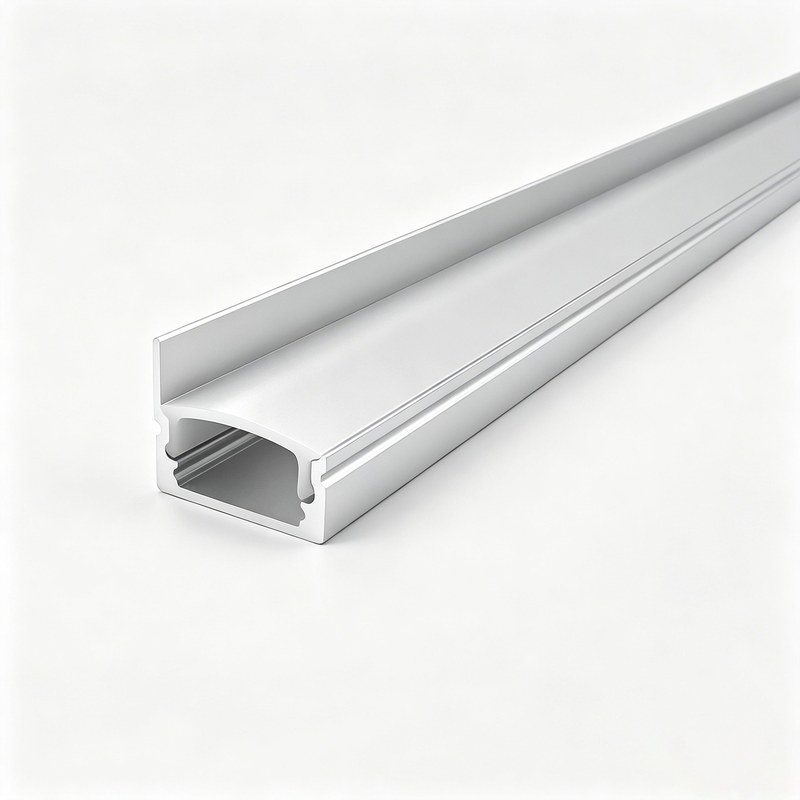

The SM1707-W surface mounted LED aluminum profile is designed for clean, versatile linear lighting installations. Its slim structure is ideal for shelves, under-cabinet lighting, walls, ceilings and other space-saving applications.
Manufactured from premium 6063-T5 extruded aluminum, the profile is available in anodized silver, black and powder-coated finishes. Standard lengths are 2 m, 2.5 m and 3 m, with customized cutting available.

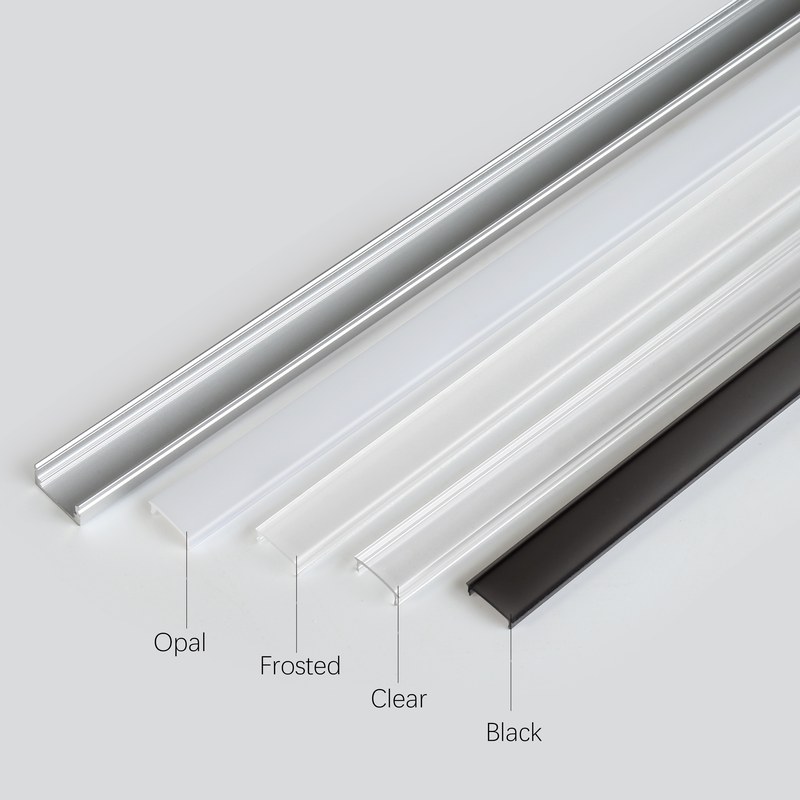

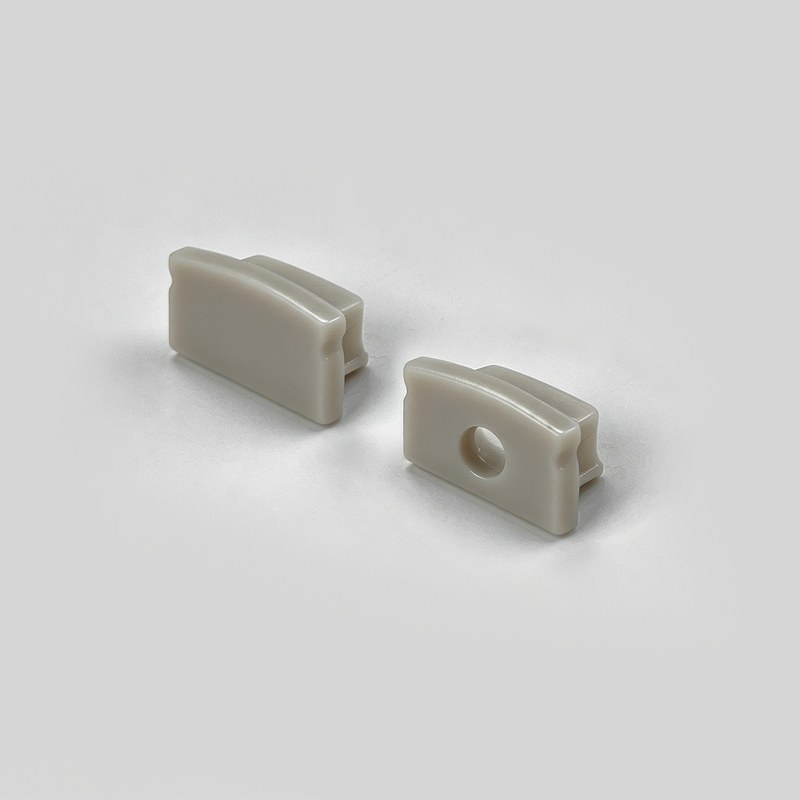

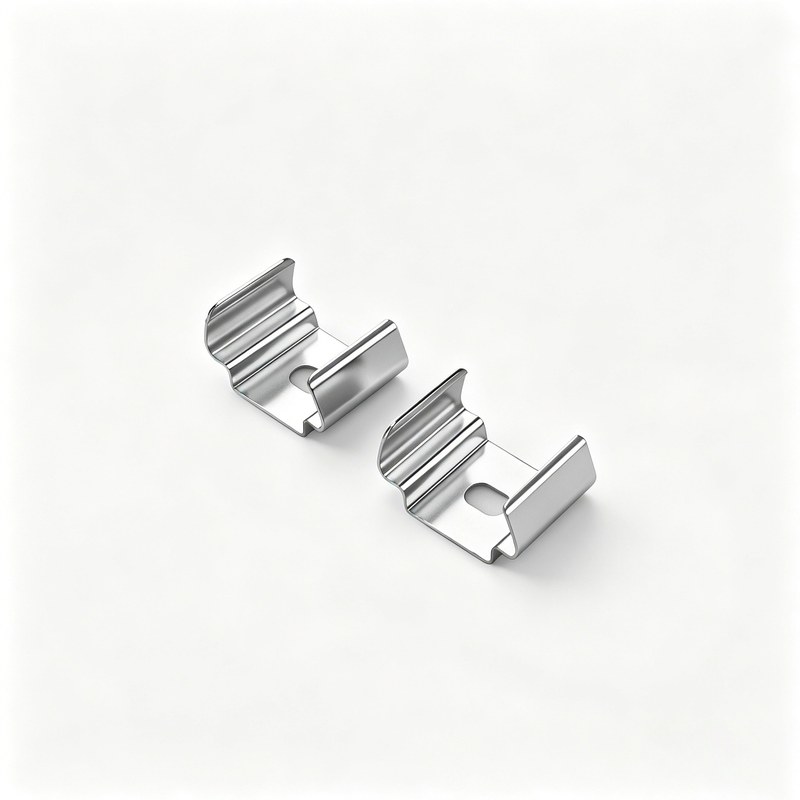

The 12.2 mm inner width supports LED strips up to 12 mm wide. PMMA opal, frosted, clear and black diffusers, as well as a PC diffused cover, are available. End caps with or without wire holes and metal mounting clips are included.
| Model | SM1707-W |
|---|---|
| Size | 17 mm × 8 mm |
| Product Type | Surface-mounted aluminum profile |
| Profile Material | 6063-T5 extruded aluminum |
| Surface Finish | Anodized silver, black or powder-coated black |
| Profile Length | 2 m, 2.5 m, 3 m and customized lengths |
| Inner Width | 12.2 mm |
| Maximum LED Strip Width | 12 mm |
| Diffusers | PMMA opal, frosted, clear, black or PC diffused |
| Accessories | End caps with or without wire holes and metal mounting clips |
| Installation | Surface-mounted |
| Applications | Under-cabinet, cove and furniture lighting |
| Certifications | CE, RoHS |
| Warranty | 5 years |
We keep 2 m and 3 m lengths in stock. Lengths up to 6 m can be produced.
Yes. Our in-house tooling center supports customized aluminum profiles, diffusers, end caps and clips.
Yes. Black and white are available, while gold, champagne, bronze, grey and other colors can be customized.
Yes. Our SMT production line supports assembly of LED strips with the aluminum profile.
Typical lead time is 3–7 days for small orders and 15–30 days for volume orders.
Yes, short sample pieces are available free of charge.
