SM1707 Surface Mounted 6063 LED Aluminum Profile: Glare-Controlled Lighting for Indoor Cabinets & Shelves

The slim anodized 6063-grade aluminum profile for surface-mounted LED strip installations. Designed for direct mounting on flat surfaces, making it ideal for walls, bookshelves, cabinets, furniture, interiors and display shelves. Compatible with PMMA diffuser options, featuring mounting clips, adjustable clips and end caps for easy installation.

Product Details

The SM1707 surface-mounted LED aluminum profile is designed for clean, versatile linear lighting installations. Ideal for walls, bookshelves, cabinets, furniture, display shelves, and various indoor applications, it provides an elegant and practical lighting solution for modern interiors.

The LED channel is made from premium-quality 6063-grade extruded aluminum with an anodized finish, offering excellent durability and a sleek appearance. Its surface-mounted design allows for easy installation directly onto flat surfaces using mounting clips. The profile can be equipped with different LED light diffusers, such as PMMA opal, frosted, or clear covers, to achieve different lighting effects and light transmission levels.
The inner width is 12mm, allowing for a maximum led strip light width of 12mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.

Specifications

Model SM1707
Size (W*H) W17*H8mm
Product type Surface-mounted aluminum profile
Profile material 6063-T5 extruded aluminum

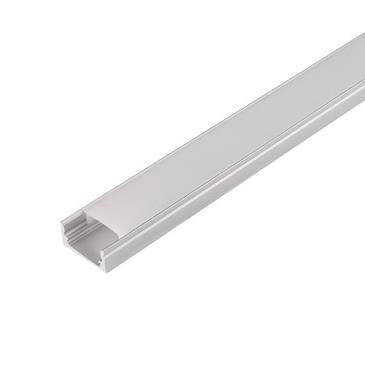

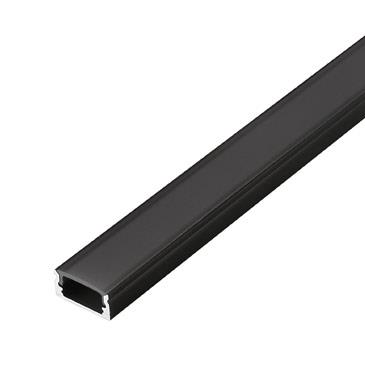

Surface finish Anodized Silver/black/powder coating black
Profile length 2m, 2.5m, 3m and customized length
Inner width 12mm
Max width of strip lights 12 mm
Diffusers PMMA opal/frosted/clear/PC diffused

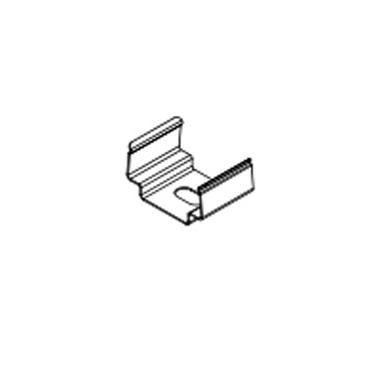

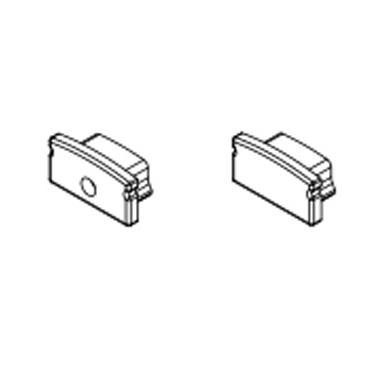

End caps with/without wire holes included, metal mounting clips included
Installation Surface-mounted
Application walls, bookshelves, cabinets, furniture, display shelves, and various indoor applications,
Certifications CE, RoHS
Warranty 5 years

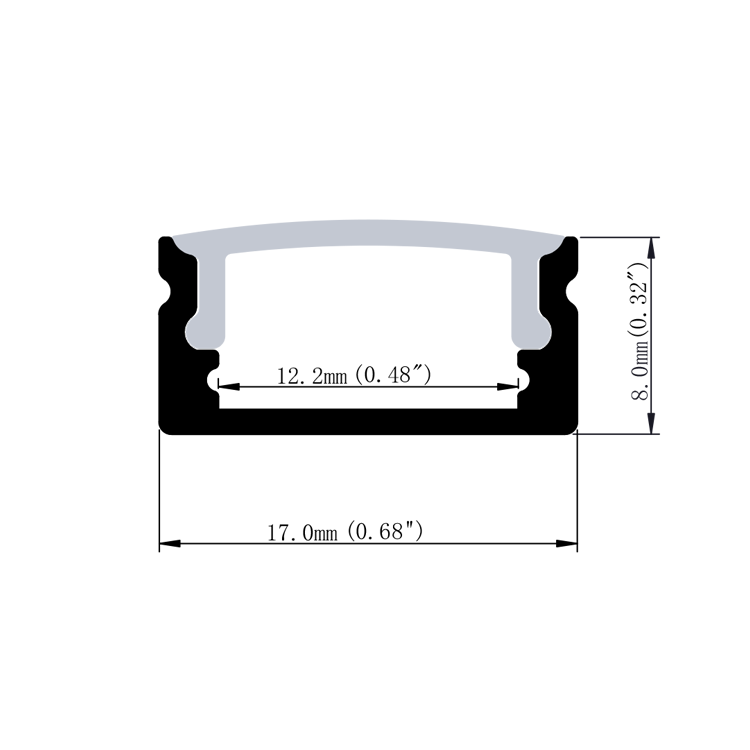

Product Drawings

SM1707 LED aluminum profile detail image 1

SM1707 LED aluminum profile detail image 2

SM1707 LED aluminum profile detail image 3

FAQ

what’s the length in stock?

we keep 2m, 3m in stock. We can do max. 6meters.

Can you do customized design?

yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.

Can we have the aluminum channel in other colors?

yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.

Does your company assemble the led strips and drivers?

yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.

what is the delivery time?

3-7 days for small order, 15-30 days for volume order.

What’s your MOQ?

3-7 days for small order, 15-30 days for volume order.

Do you provide free samples?

yes, we provide free samples in short pieces.
