RD1722—Recessed H-Shape Aluminium Led Extrusion Silver Black White Deep Regressed Diffuser Led Profile

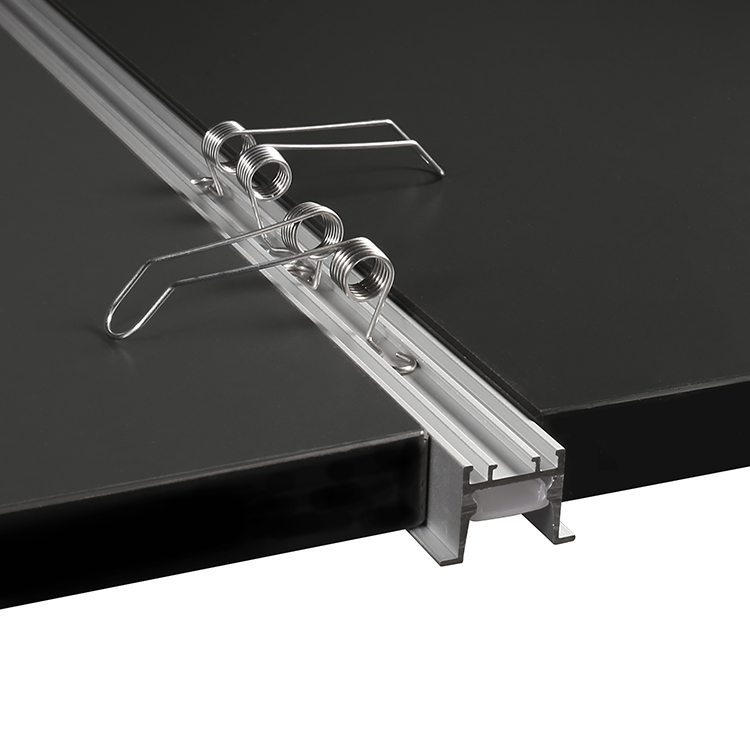

RD1722 Anodized Aluminum LED Profile with Deep Recessed Diffuser for Reduced Glare, Ideal for Cabinet, Wardrobe and Bookshelf Lighting. Made from durable 6063-grade aluminum, designed for compact recessed linear lighting installations. Available with white or black end caps and spring clips for easy installation.
The RD1722 recessed H-shape aluminum LED profile is designed for clean, elegant and professional linear lighting installations. Ideal for cabinets, wardrobes, bookshelves, furniture and other interior lighting applications.

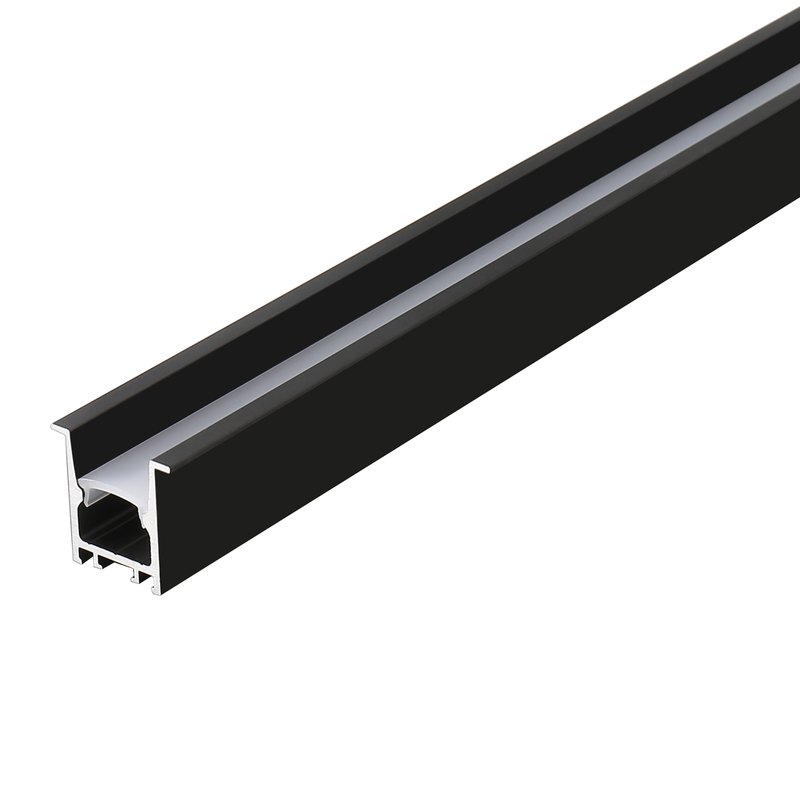

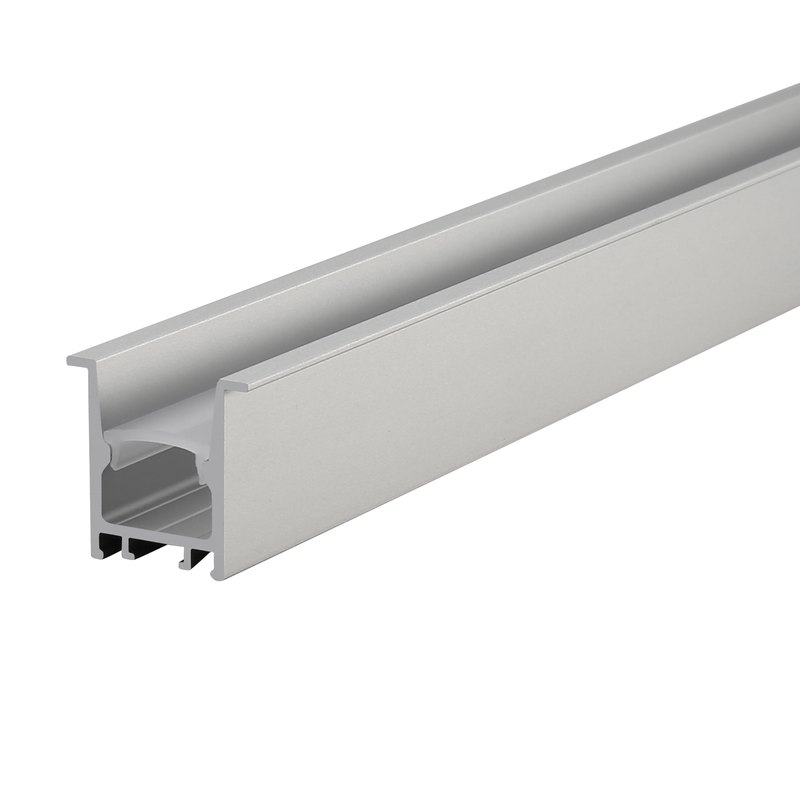

The LED channel is made from premium-quality 6063-grade extruded aluminum and is available in silver, black and white finishes. Its recessed H-shape design allows for seamless integration into furniture and other surfaces, creating a neat and modern appearance. The deep-recessed diffuser helps reduce glare and provides more comfortable, uniform lighting.
Different diffuser options are available to meet various lighting requirements. The profile is designed for small-size linear lighting fixtures, making it an excellent choice for decorative and functional indoor lighting.
The inner width is 14mm, allowing for a maximum led strip light width of 14mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | RD1722 |
|---|---|
| Size | W16.8*H22mm |
| Product Type | Recessed aluminum profile |
| Profile Material | 6063-T5 extruded aluminum |
| Surface Finish | Anodized Silver/black/powder coating black |
| Profile Length | 2m, 2.5m, 3m and customized length |
| Inner Width | 14mm |
| Maximum LED Strip Width | 14 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |

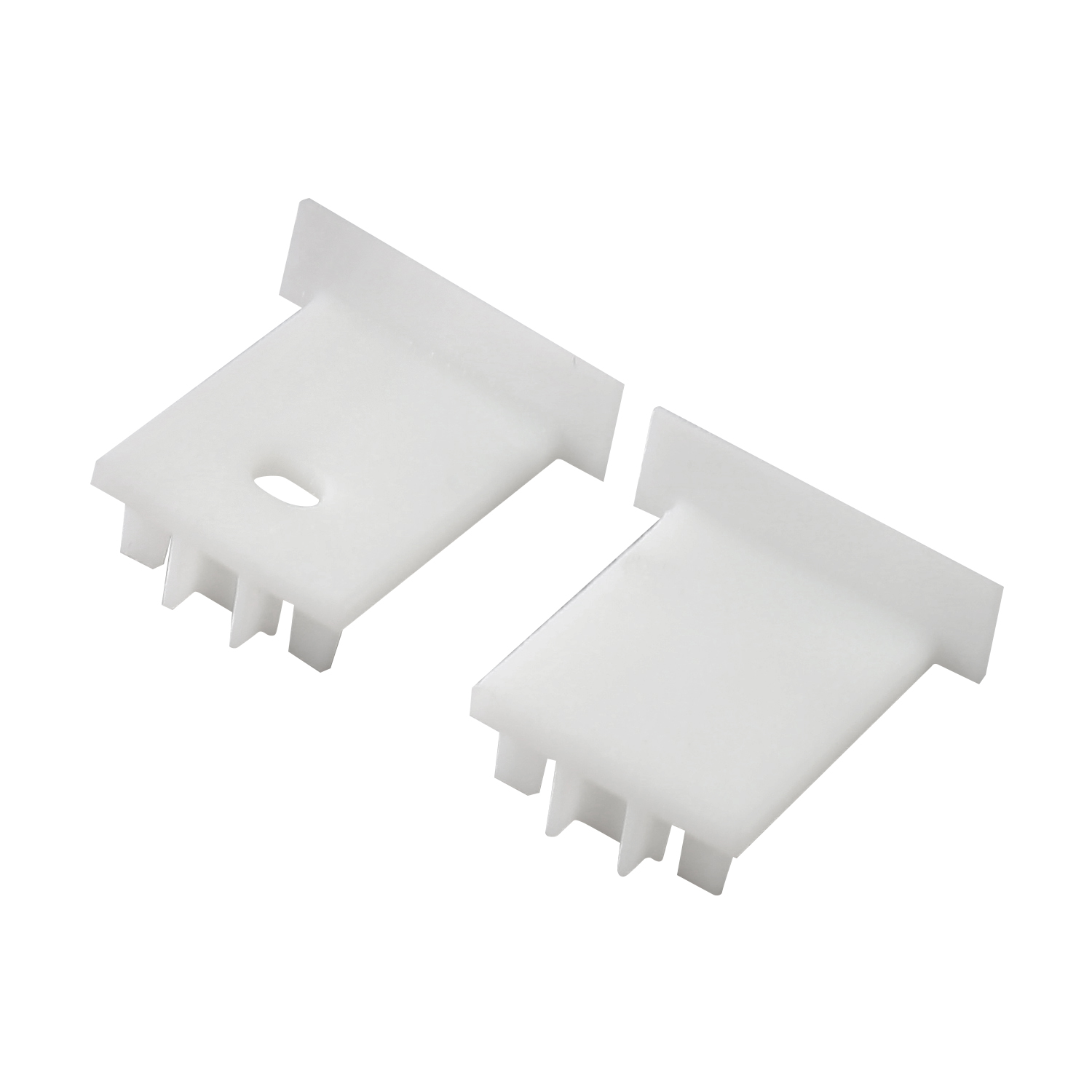

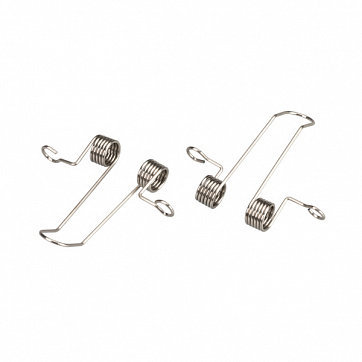

| Accessories | End caps with/without wire holes included, metal mounting clips included |
| Installation | recessed |
| Applications | cabinets, wardrobes, bookshelves, furniture and other interior lighting applications. |
| Certifications | CE, RoHS |
| Warranty | 5 years |
FAQ
What’s the length in stock?
We keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
Yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
Yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
Yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
What is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
Yes, we provide free samples in short pieces.
