RD1716—Small Size Aluminum Profile Deep Regressed Diffuser Profile Channel Aluminium Profile Light for Led Strip
RD1716 Anodized Aluminum LED Profile: 6063 Grade Aluminum with Deep Recessed Diffuser for Reduced Glare, Ideal for Cabinet, Wardrobe and Bookshelf Lighting. Designed for Recessed Installation, with White or Black End Caps and Spring Clips. CE & RoHS Certified.

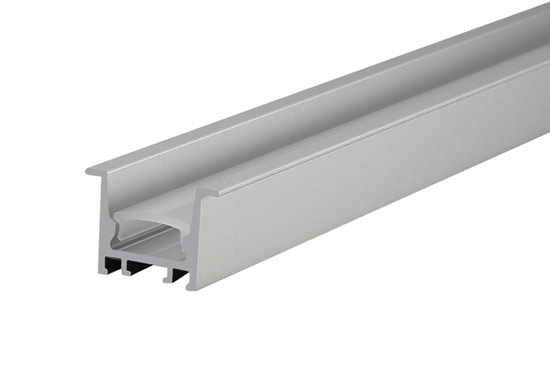

The RD1716 recessed LED aluminum profile is specially designed for compact and elegant linear lighting installations. Ideal for cabinets, wardrobes, bookshelves, and other furniture applications, it provides a clean, seamless lighting effect while saving installation space.
The LED channel is made from premium-quality 6063-grade extruded aluminum with an anodized finish, ensuring excellent durability, corrosion resistance, and effective heat dissipation. Its compact design makes it perfect for small-size linear LED lighting fixtures. The deep-recessed diffuser helps reduce direct glare, providing softer, more comfortable and uniform illumination.
The inner width is 13mm, allowing for a maximum led strip light width of 13mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | RD1716 |
|---|---|

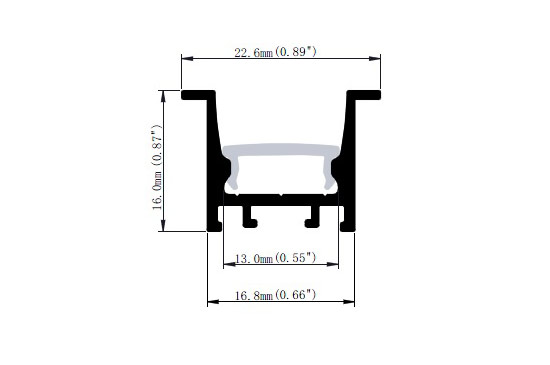

| Size | W16.8*H16mm |
| Product Type | Recessed aluminum profile |
| Profile Material | 6063-T5 extruded aluminum |

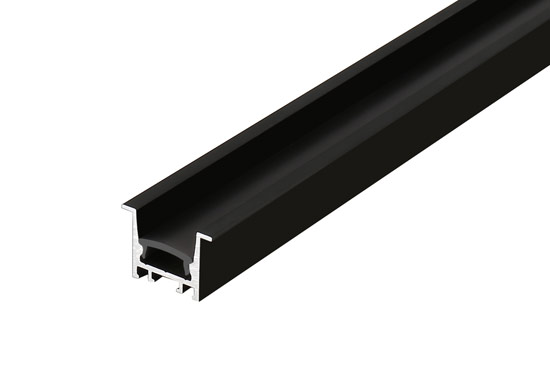

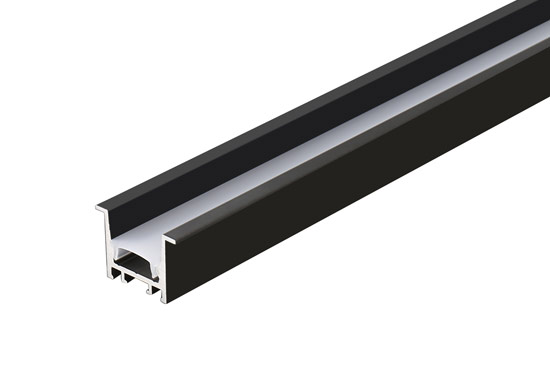

| Surface Finish | Anodized Silver/black/powder coating black |
| Profile Length | 2m, 2.5m, 3m and customized length |
| Inner Width | 13mm |
| Maximum LED Strip Width | 13 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |
| Accessories | End caps with/without wire holes included, metal mounting clips included |
| Installation | recessed |
| Applications | cabinets, wardrobes, bookshelves |
| Certifications | CE, RoHS |
| Warranty | 5 years |
FAQ
What’s the length in stock?
We keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
Yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
Yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
Yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
What is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
Yes, we provide free samples in short pieces.
