RC1719–Profile with edge–Upgraded Recessed Profiles for Clean Ceiling Lighting
The upgraded recessed aluminum profile for ceiling-mounted LED strip installations. Designed with an improved structure for a clean, seamless ceiling finish and easy installation. Ideal for residential ceilings, retail stores, kitchens and wardrobes. Compatible with multiple LED strips and accessories, including end caps, spring clips and suspension kits. Upgraded from the original 17×15mm profile for enhanced performance, with a design specifically developed for ceiling lighting applications.

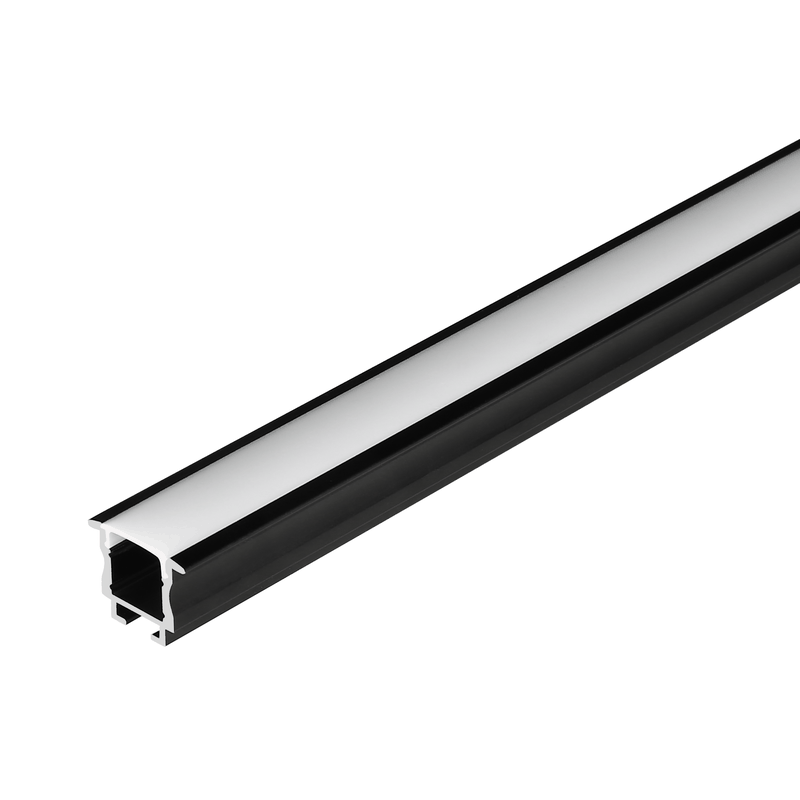

The RC1719 is an upgraded recessed LED aluminum profile designed to create clean, seamless linear lighting effects on ceilings. Ideal for residential, retail stores, kitchens, wardrobes, and other interior lighting applications, it provides a modern and elegant lighting solution.
The LED channel features an upgraded structure based on the original 17×15mm profile, offering improved design and performance. It is specially designed for recessed ceiling installations, helping create a neat, integrated appearance while providing reliable support for LED strip lighting. Compatible with multiple LED strips and lighting accessories, it offers flexibility for different lighting requirements.

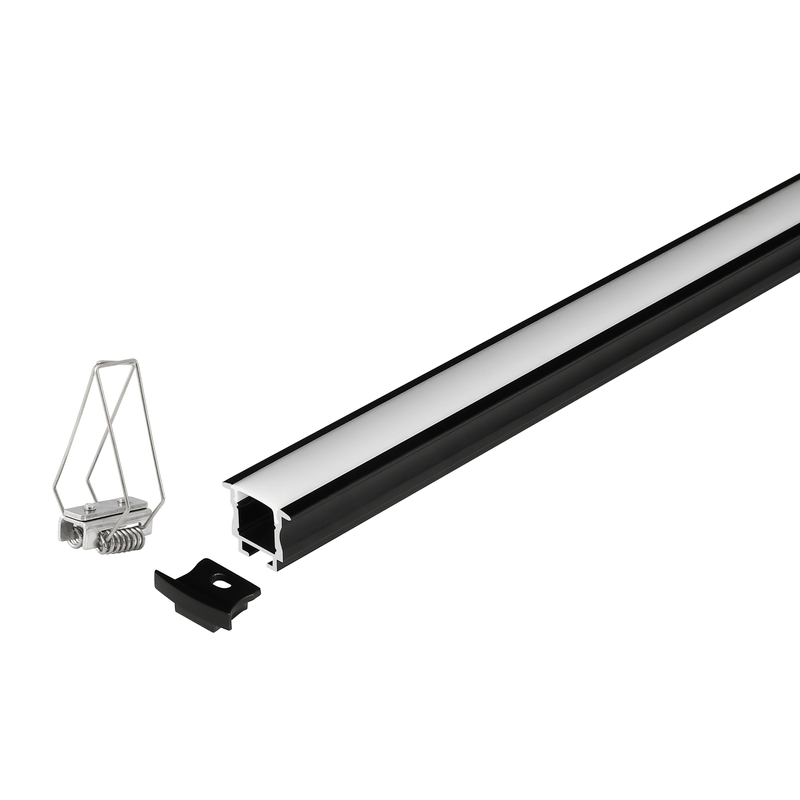

The profile supports both recessed installations, making it suitable for a variety of ceiling lighting designs. Matching accessories, including end caps, spring clips, and suspension kits, are available to ensure convenient installation and secure mounting.
The inner width is 12mm, allowing for a maximum led strip light width of 12mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | RC1719 |
|---|---|

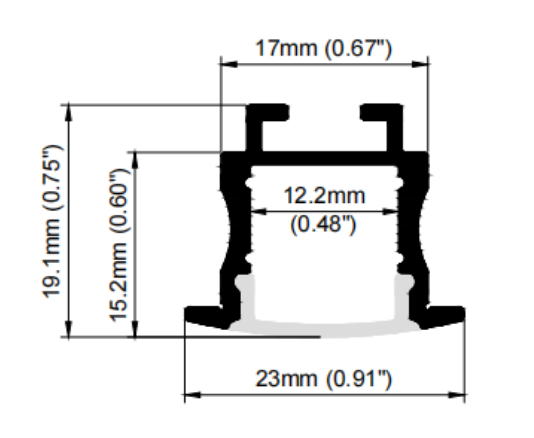

| Size | W17*H19.1mm |
| Product Type | Recessed aluminum profile |
| Profile Material | 6063-T5 extruded aluminum |

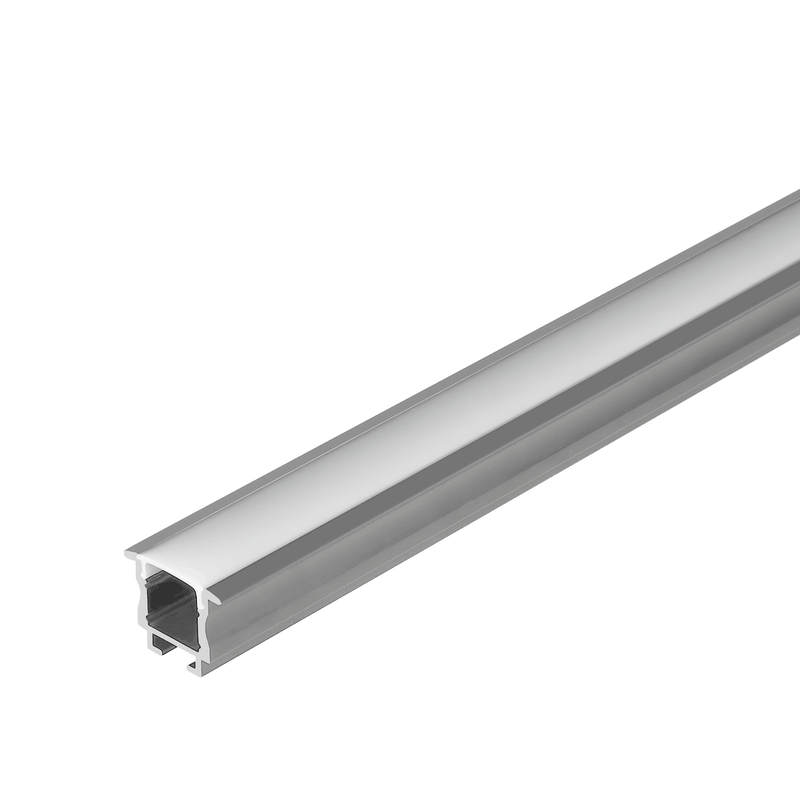

| Surface Finish | Anodized Silver/black/powder coating black |
| Profile Length | 2m, 2.5m, 3m and customized length |
| Inner Width | 12mm |
| Maximum LED Strip Width | 12 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |
| Accessories | End caps with/without wire holes included, metal mounting clips included |

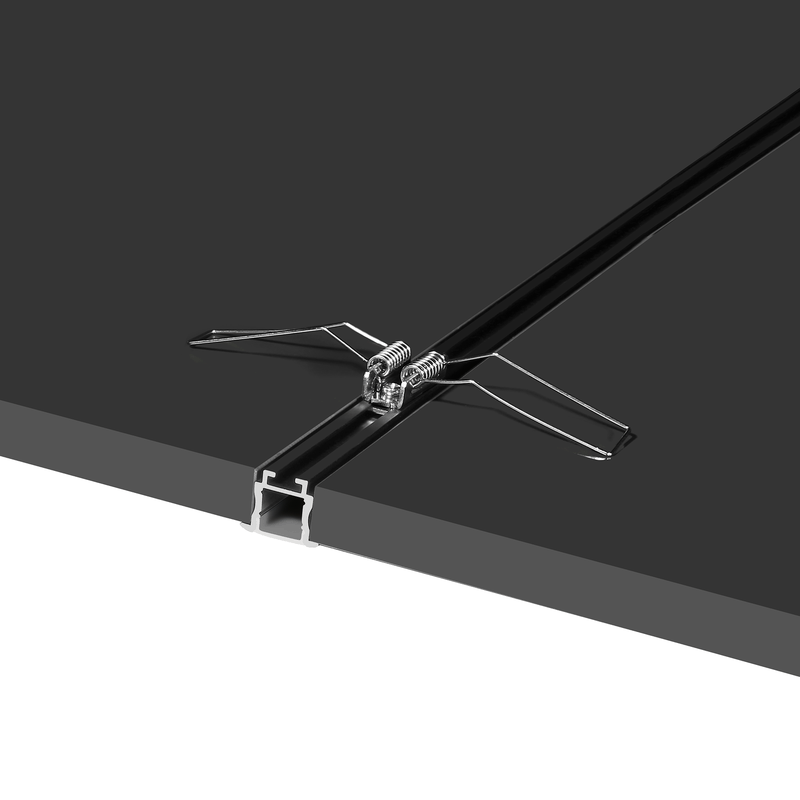

| Installation | recessed |
| Applications | residential, retail stores, kitchens, wardrobes, and other interior lighting applications, |
| Certifications | CE, RoHS |
| Warranty | 5 years |
FAQ
What’s the length in stock?
We keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
Yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
Yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
Yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
What is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
Yes, we provide free samples in short pieces.
