RC1715—Recessed Anodized Aluminium Profile Floor Wall Ceiling Different Furniture Lighting Led Extrusion

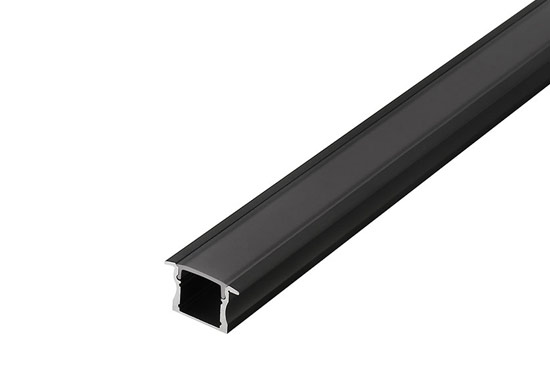

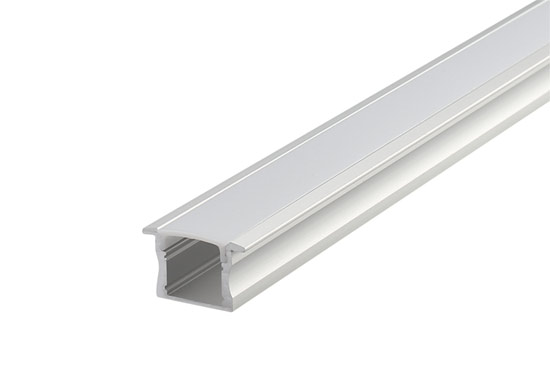

RC1715 Recessed Anodized Aluminum LED Profile made from high-quality 6063-grade aluminum. Designed for recessed installation in floors, walls, ceilings, cabinets, wardrobes and bookshelves. Its integrated side wings cover the edges of the mounting groove, creating a clean, seamless finish. Available with white or black end caps for a neat and professional installation.
The RC1715 recessed LED aluminum profile is designed for elegant and seamless linear lighting installations. It is ideal for recessed lighting applications in floors, walls, ceilings, cabinets, wardrobes, bookshelves and other furniture.
The LED channel is made from premium-quality 6063-grade extruded aluminum with an anodized finish, offering excellent durability and a clean, modern appearance. It can be recessed into floors, walls or ceilings, while the specially designed wings cover the edges of the installation groove, creating a neat and professional finish.
The profile is suitable for various indoor lighting applications and can be customized to meet different installation requirements. White and black end caps are available to provide a clean and finished look. With its recessed design and versatile applications, the RC1715 aluminum profile is an ideal solution for modern architectural and furniture lighting.
The inner width is 12mm, allowing for a maximum led strip light width of 12mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | RC1715 |
|---|---|

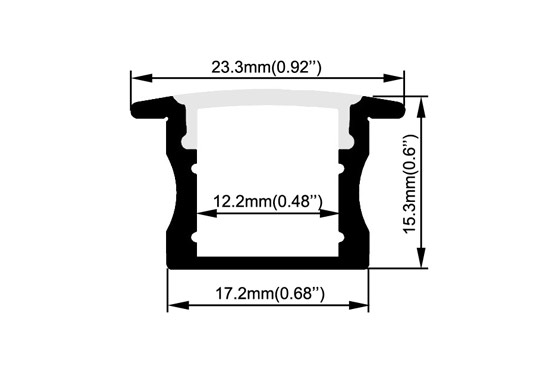

| Size | W17*H15mm |
| Product Type | Recessed aluminum profile |
| Profile Material | 6063-T5 extruded aluminum |
| Surface Finish | Anodized Silver/black/powder coating black |
| Profile Length | 2m, 2.5m, 3m and customized length |
| Inner Width | 12mm |
| Maximum LED Strip Width | 12 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |
| Accessories | End caps with/without wire holes included, metal mounting clips included |
| Installation | recessed |
| Applications | floors, walls, ceilings, cabinets, wardrobes, bookshelves and other furniture. |
| Certifications | CE, RoHS |
| Warranty | 5 years |
FAQ
What’s the length in stock?
We keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
Yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
Yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
Yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
What is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
Yes, we provide free samples in short pieces.
