Product Features

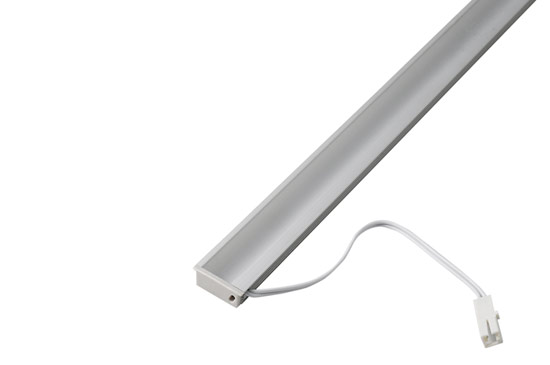

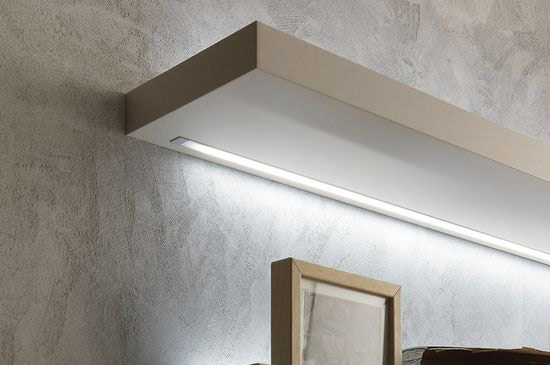

·High-profile Aluminum LED linear light fixtures are ideal for areas where space is limited,such as under-cabinet lighting, cover lighting, shelf lighting, showcase lighting, ect”
·This Customized aluminum LED light bar is fitted with 5mm 210LEDs/m ( SMD2216) to creat line of lighting
·Plug-and-play male and female connectors allow for continuous run to a compatible power supply.
·Customized length and different brightness are on request.
Product Specification
| Item No. | LSM2309 |
| Material | Anodized Aluminum alloy 6063-T5 |
| Diffuser | Opal |

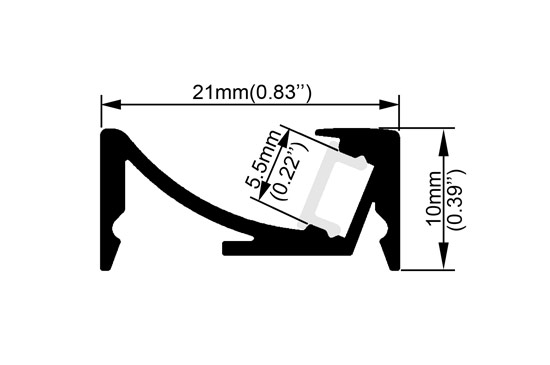

| Dimension | L1000*W21*H10mm |
| Input voltage | DC24V |
| Power | 8.6w/m |
| LED | 8.6w/m |
| Luminous efficacy | ~35lm/w |
| CRI | >80Ra,>90Ra |
| CCT | 3000~6500K |
| Driver options | Non-dimming |
| Mounting options | Surface mount |
| IP Rating | IP40 |
| Finish | Black / White / Silver |
| Accessories | Mounting Clip |
