LSM0809/LSM0806

High-profile Aluminum LED linear light fixtures are ideal for areas where space is limited,such as under-cabinet lighting, cover lighting, shelf lighting, showcase lighting, ect"

Chat Now Message Email

Product Features

High-profile Aluminum LED linear light fixtures are ideal for areas where space is limited,such as under-cabinet lighting, cover lighting, shelf lighting, showcase lighting, ect”

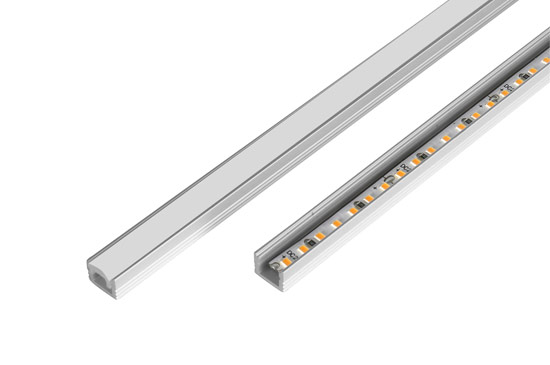

This Customized aluminum LED light bar is fitted with 5mm 210LEDs/m ( SMD2216) to creat line of lighting

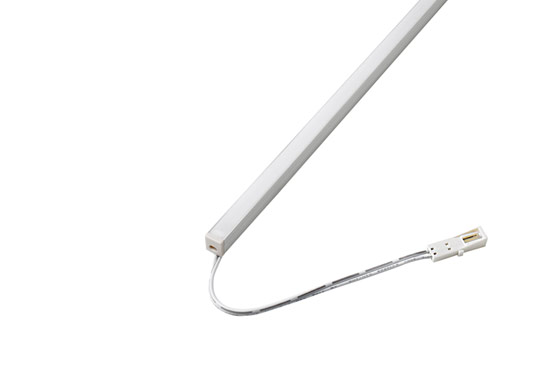

Plug-and-play male and female connectors allow for continuous run to a compatible power supply.
Customized length and different brightness are on request.

Product Specification

Item No.	LSM0809/LSM0806
Material	Anodized Aluminum alloy 6063-T5
Diffuser	Opal

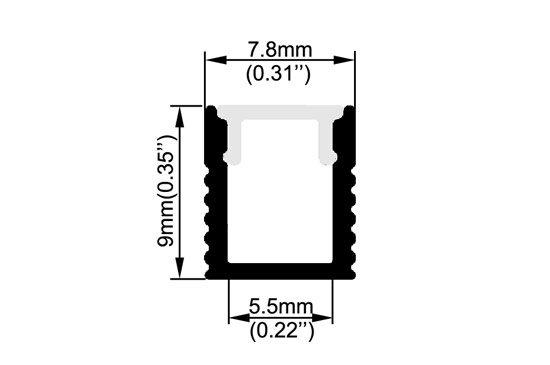

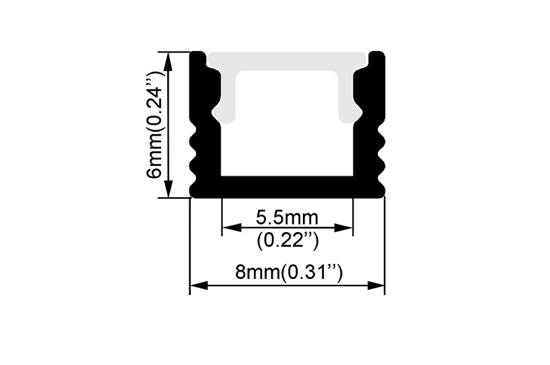

Dimension	L1000W8H9mm/W8*H6mm
Input voltage	DC24V
Power	8.6w/m
LED	8.6w/m
Luminous efficacy	~40lm/w
CRI	>80Ra,>90Ra
CCT	3000~6500K
Driver options	Non-dimming
Mounting options	Recessed
IP Rating	IP40
Finish	Black / White / Silver
