HC5175V2 LED Aluminum Profile with Unique Design for Versatile Lighting Applications
The HC5175V2 LED aluminum profile is designed to provide comfortable, high-quality linear lighting for a wide range of indoor environments. Ideal for hospitals, schools, hotels, offices and other commercial spaces, it offers versatile lighting solutions with both surface-mounted and suspended installation options.

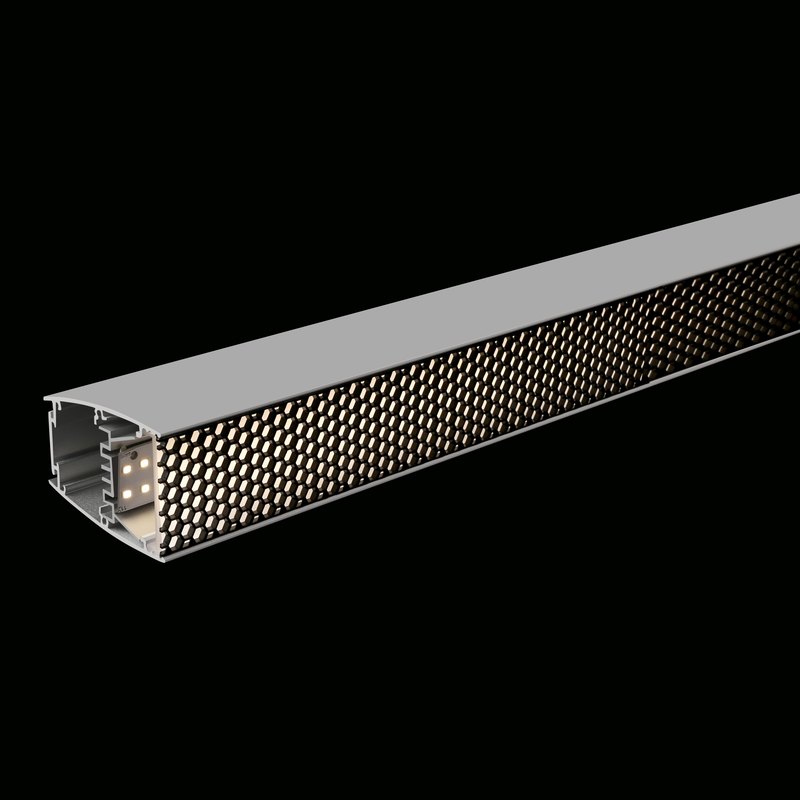

The LED channel features a unique honeycomb design that helps reduce glare and achieve UGR<19, providing high visual comfort and a more pleasant lighting environment. Its carefully designed structure combines modern aesthetics with practical functionality, making it an excellent choice for professional architectural and commercial lighting applications.

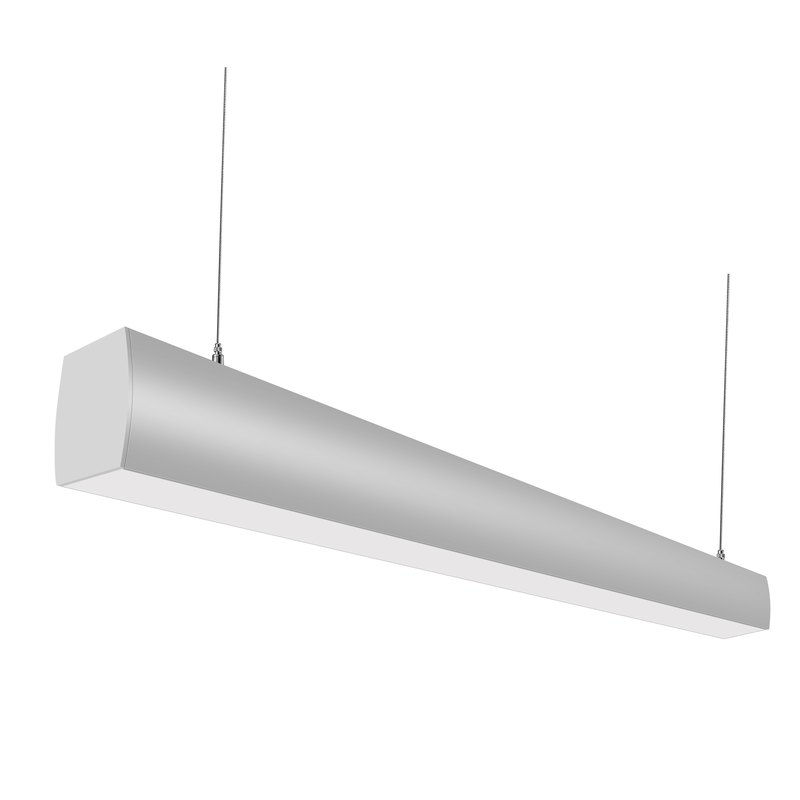

The HC5175V2 supports flexible installation options, including surface mounting and suspension. The click-in middle tray allows for easy installation and maintenance, making the lighting system more convenient to assemble and service.
The inner width is 26mm, allowing for a maximum led strip light width of 26mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | HC5175-V2 |
|---|---|

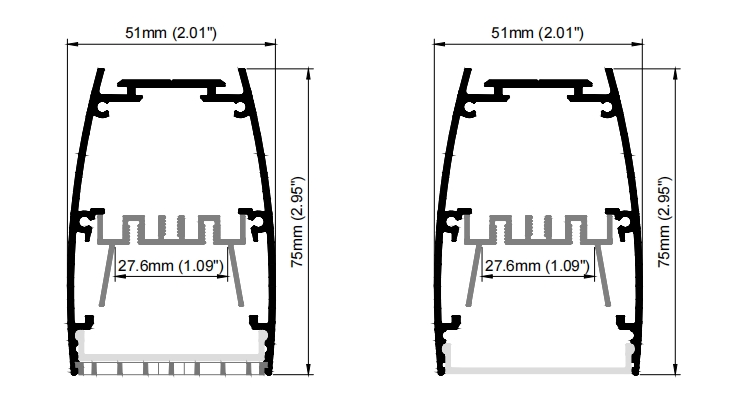

| Size (W*H) | W50*H75 mm |
| Product type | Suspended aluminum profile |
| Profile material | 6063-T5 extruded aluminum |
| Surface finish | Anodized Silver/black/powder coating black |
| Profile length | 2m, 2.5m, 3m and customized length |
| Inner width | 26mm |
| Max width of strip lights | 26 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |
| End caps with/without wire holes included, metal mounting clips included | |
| Installation | Suspended |
| Application | hospitals, schools, hotels, offices and other commercial spaces |
| Certifications | CE, RoHS |
| Warranty | 5 years |
FAQ
what’s the length in stock?
we keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
what is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
yes, we provide free samples in short pieces.
