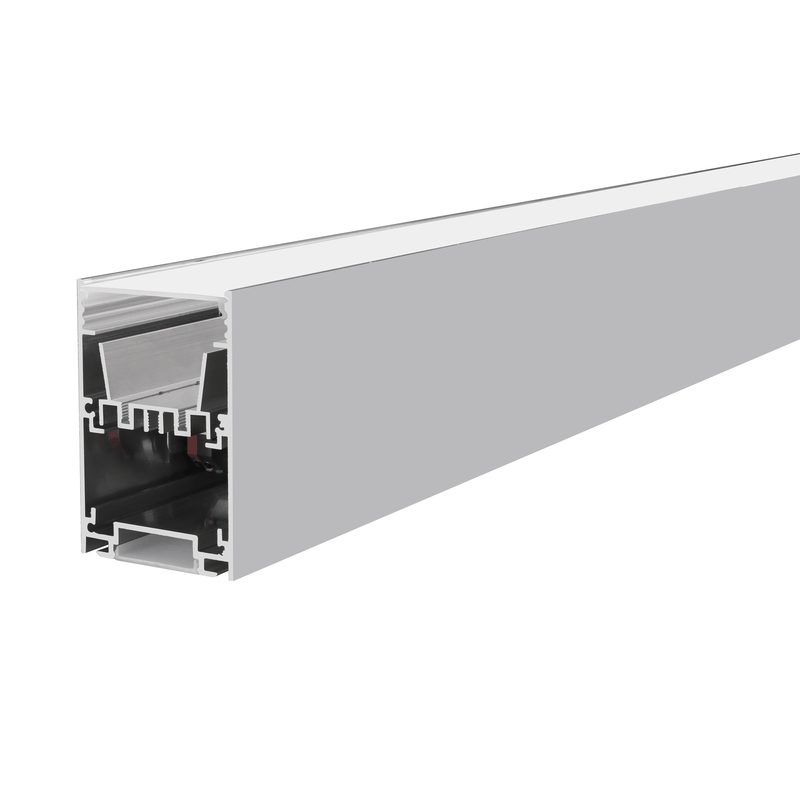

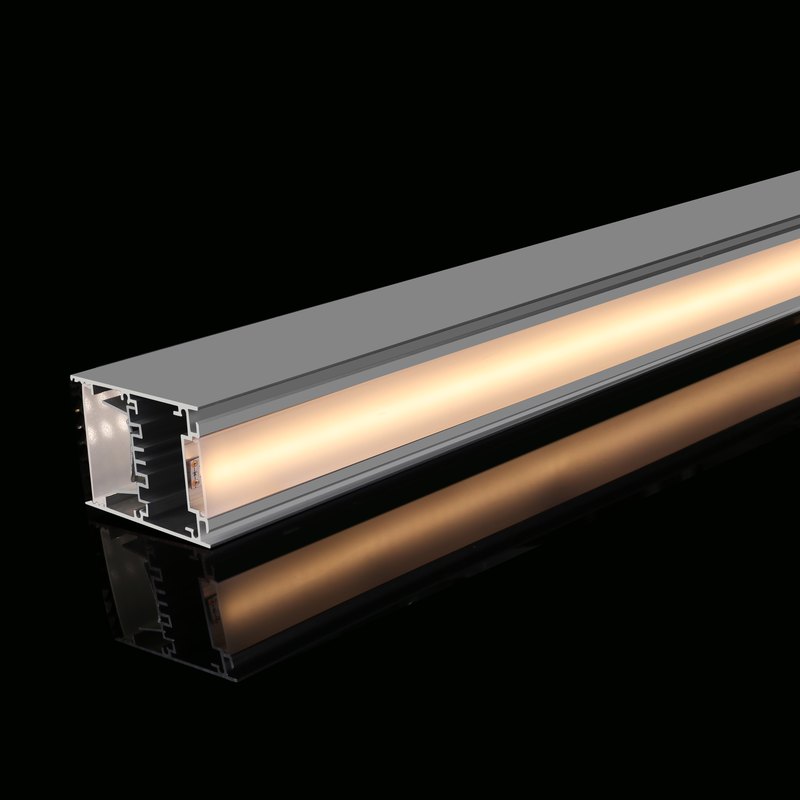

HC5075V2-D Surface Mounted LED Aluminum Profile with Honeycomb Anti-Glare Design for Comfortable Lighting
The HC5075V2-D LED aluminum profile is designed for high-performance linear lighting applications, combining a honeycomb design with excellent visual comfort. With a UGR<19 rating, it effectively reduces glare and provides comfortable, uniform illumination, making it ideal for hospitals, schools, hotels, offices and other commercial spaces.

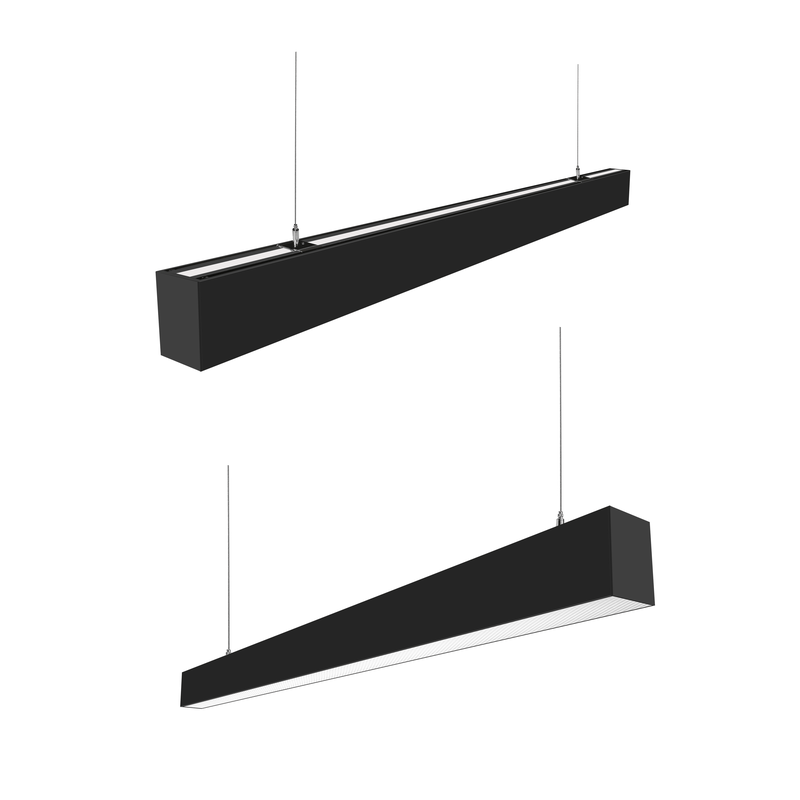

The lighting fixture features a convenient click-in tray design, allowing for easy installation and maintenance. It also comes with a built-in linear power supply, offering a neat and integrated lighting solution. Designed for suspended installation, the profile provides a clean, modern appearance while delivering high-quality lighting performance.
A range of accessories is available to meet different installation requirements, including end caps, internal clips, outer clips, suspension kits and honeycomb covers. The HC5075V2-D is an ideal choice for modern architectural and commercial lighting projects where visual comfort, easy maintenance and elegant design are essential.
The inner width is 26mm, allowing for a maximum led strip light width of 26mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | ES5075-C1 |
|---|---|
| Size (W*H) | W50*H75 mm |
| Product type | Suspended aluminum profile |
| Profile material | 6063-T5 extruded aluminum |
| Surface finish | Anodized Silver/black/powder coating black |
| Profile length | 2m, 2.5m, 3m and customized length |
| Inner width | 26mm |
| Max width of strip lights | 26 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |
| End caps with/without wire holes included, metal mounting clips included | |
| Installation | Suspended |
| Application | hospitals, schools, hotels, offices and other commercial spaces. |
| Certifications | CE, RoHS |
| Warranty | 5 years |
FAQ
what’s the length in stock?
we keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
what is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
yes, we provide free samples in short pieces.
