Product Features

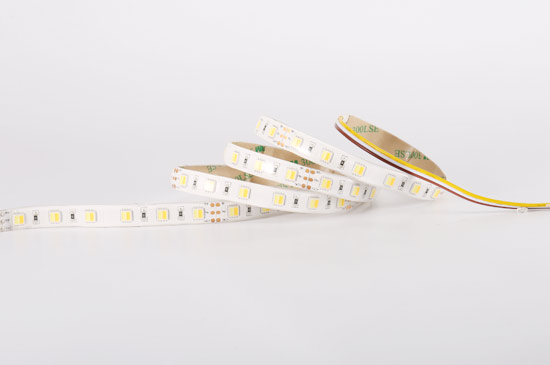

·Super bright SMD 5050 LED for high brightness requirement.
·CRI>80 and CRI>90 are optional.
·LED brightness: 50-55lm CRI>80.
·CCT (2 in one chip) is adjustable from 2700k to 6500k.
·Lifetime: >35,000hours, 2 years warranty.
·Material: white double layer FPCB+2OZ rolled cooper Tech+ Original 3M tape+ Lead-free paste.
·Working temperature and Storage temperature:0℃ – 40℃.
Product Specification
| Item No. | FL5050-60-CCT |
| LED Qty/meter | 60LEDs |
| Power/meter | 14W |
| Inputvoltage | 12V/24V |
| Lumen/meter | 1050lm |
| CRI | >80,>90 |
| CCT | 2200-6500K |
| IP rating | IP20,IP65,IP66,IP68 |
| Cutting unit(24V) | 100mm(6LED) |
| PCB width | 10mm |
