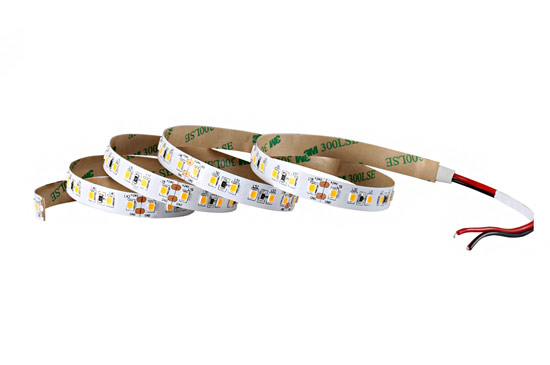

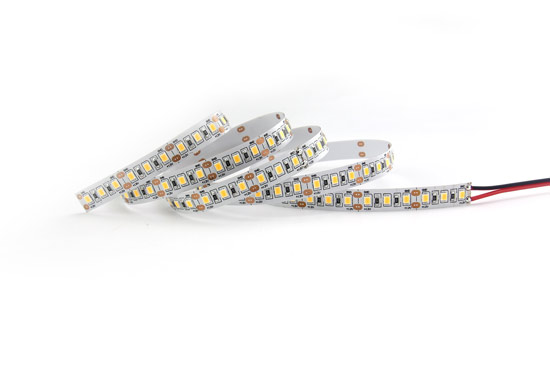

FL2835-120

SMD 2835 LED as lighting sources, high light output,LED Q'ty / 120pcs/m. Working voltage: DC12V/24V .

Chat Now Message Email

Product Features

·SMD 2835 LED as lighting sources, high light output.

·LED Q’ty / 120pcs/m.

·Working voltage: DC12V/24V .

·IP20, IP65 ( silicon glue) , IP66 (Silicon sleeve), IP68 ( Glue filling) are optional.

·LED brightness: 22-24lm CRI>80.

·Color Temperature: Warm White: 2800-3000K/ Natural White:4000-4500K/

Pure White: 5000-5500K/ Cold White: 5500-6500K, other special color temperatures are optional.

·Material: white double layer FPCB+2OZ rolled cooper Tech+ Original 3M tape+ Lead-free paste

·Lifetime: >35,000hours, 3 years warranty

·Working temperature and Storage temperature:0℃ – 40℃.

Product Specification

Item No.	FL2835-120
LED Qty/meter	120LEDs
Power/meter	12.8W
Inputvoltage	12V/24V
Lumen/meter	1150lm
CRI	>80,>90,>95
CCT	2200-6500K
IP rating	IP20,IP65,IP66,IP68
Cutting unit(24V)	50mm(6LED)
PCB width	10mm
