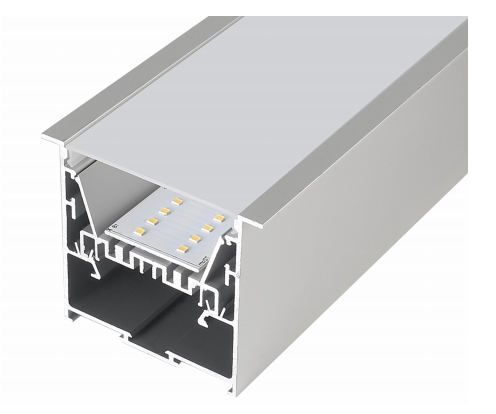

ES7575-R1 Recessed LED Aluminum Profile with Quick Installation and Easy Maintenance, Delivering Flexible and Efficient Lighting Solutions
The ES7575-R1 LED aluminum profile is designed for efficient and versatile recessed lighting installations. Ideal for hospitals, schools, hotels, offices and other commercial or public spaces, it provides a clean, integrated lighting solution for various indoor applications.
The LED profile features a universal-size design with a built-in driver, making installation faster and maintenance easier. It supports both single-run and continuous-run configurations, offering flexible lighting layouts to meet different project requirements. With its convenient installation structure and easy-maintenance design, the ES7575-R1 provides a practical and reliable solution for modern architectural lighting.

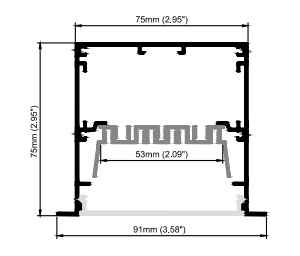

The inner width is 53mm, allowing for a maximum led strip light width of 53mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.
Specifications
| Model | ES7575-R1 |
|---|---|
| Size (W*H) | W75*H75 mm |
| Product type | Recessed aluminum profile |
| Profile material | 6063-T5 extruded aluminum |
| Surface finish | Anodized Silver/black/powder coating black |
| Profile length | 2m, 2.5m, 3m and customized length |
| Inner width | 53mm |
| Max width of strip lights | 53 mm |
| Diffusers | PMMA opal/frosted/clear/PC diffused |
| End caps with/without wire holes included, metal mounting clips included | |
| Installation | Recessed |
| Application | hospitals, schools, hotels, offices and other commercial or public spaces |
| Certifications | CE, RoHS |
| Warranty | 5 years |
FAQ
what’s the length in stock?
we keep 2m, 3m in stock. We can do max. 6meters.
Can you do customized design?
yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.
Can we have the aluminum channel in other colors?
yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.
Does your company assemble the led strips and drivers?
yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.
what is the delivery time?
3-7 days for small order, 15-30 days for volume order.
What’s your MOQ?
3-7 days for small order, 15-30 days for volume order.
Do you provide free samples?
yes, we provide free samples in short pieces.
