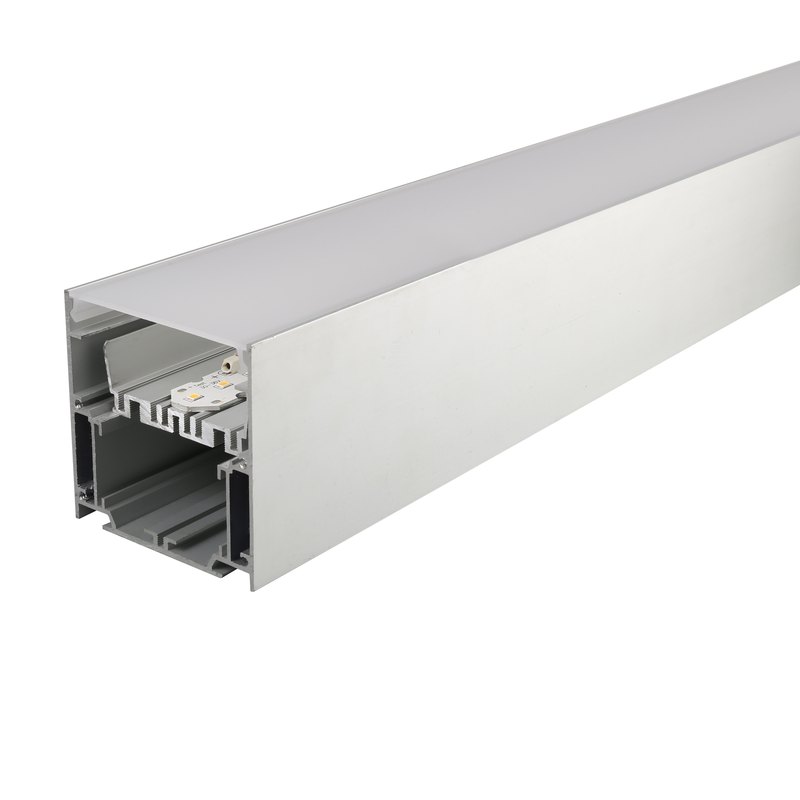

ES7575-A1 LED Aluminum Profile for Universal Lighting Applications with Convenient Installation

ES7575-A1 Universal LED Lighting Solution with Built-in Driver Design, Supporting Single and Continuous Run Installations. Designed for hospitals, schools, hotels, offices and other commercial spaces. Features versatile surface-mounted or suspended installation options, enabling fast and easy installation and maintenance. Equipped with a universal-size design and integrated driver for convenient setup and flexible lighting configurations.

The ES7575-A1 LED aluminum profile is designed to provide a versatile and convenient lighting solution for a wide range of indoor applications. With its universal size and built-in driver design, it is ideal for hospitals, schools, hotels, offices, and other commercial spaces.

Featuring a practical design, the ES7575-A1 supports both single-run and continuous-run installations, offering greater flexibility for different lighting layouts. It can be installed in either surface-mounted or suspended configurations to meet various project requirements.

The built-in driver design helps simplify installation and reduce additional wiring work, while its user-friendly structure allows for quick installation and easy maintenance. Whether used for individual lighting fixtures or continuous linear lighting systems, the ES7575-A1 provides a convenient and flexible solution for modern architectural and commercial lighting projects.

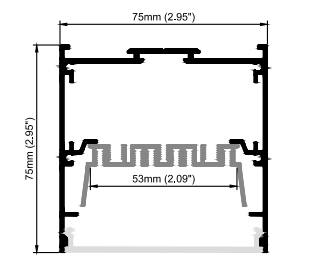

The inner width is 53mm, allowing for a maximum led strip light width of 53mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.

Specifications

Model ES7575-A1
Size (W*H) W75*H75 mm
Product type Suspended aluminum profile
Profile material 6063-T5 extruded aluminum
Surface finish Anodized Silver/black/powder coating black
Profile length 2m, 2.5m, 3m and customized length
Inner width 53mm
Max width of strip lights 53 mm
Diffusers PMMA opal/frosted/clear/PC diffused
End caps with/without wire holes included, metal mounting clips included
Installation Suspended
Application hospitals, schools, hotels, offices, and other commercial spaces.
Certifications CE, RoHS
Warranty 5 years

ES7575-A1 product detail image 1

ES7575-A1 product detail image 2

ES7575-A1 product detail image 3

FAQ

what’s the length in stock?

we keep 2m, 3m in stock. We can do max. 6meters.

Can you do customized design?

yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.

Can we have the aluminum channel in other colors?

yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.

Does your company assemble the led strips and drivers?

yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.

what is the delivery time?

3-7 days for small order, 15-30 days for volume order.

What’s your MOQ?

3-7 days for small order, 15-30 days for volume order.

Do you provide free samples?

yes, we provide free samples in short pieces.
