AH1510—led aluminum profile-Baffle – less, Sensor – Equipped Downlights for Cabinets

The slim surface-mounted aluminum LED profile designed for LED strip installations in cabinets, wardrobes, kitchens and display cabinets. Featuring a compact 15mm wide and 10mm high design, it supports LED strips with a maximum width of 10mm. Available in silver or black anodized finishes, with milky or black PC diffuser options. Its specially designed PC cover conceals the edges, delivering smooth, uniform and dot-free lighting without a baffle. Made from durable AL6063-T5 aluminum, with a standard 2-meter length. Ideal for modern cabinet lighting and decorative illumination.

The AH1510 surface mounted LED aluminum profile is designed for slim, clean and versatile linear lighting installations. Ideal for kitchen cabinets, wardrobes, display cabinets and furniture lighting.

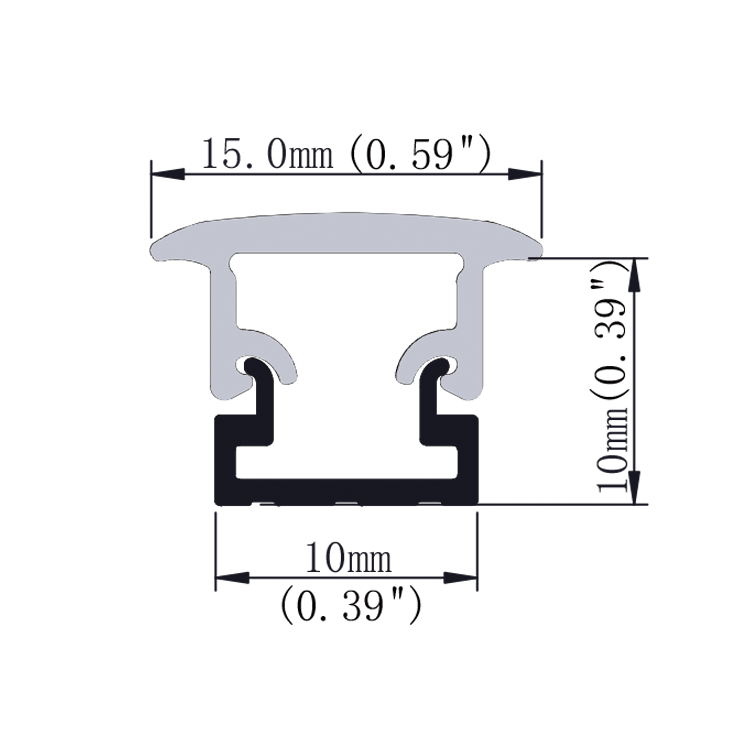

The LED aluminum channel is made from premium-quality 6063-T5 extruded aluminum, featuring a compact 15mm width and 10mm height. Available in silver and black finishes, with a standard length of 2 meters. It supports LED strips up to 10mm wide, making it suitable for various cabinet lighting applications.

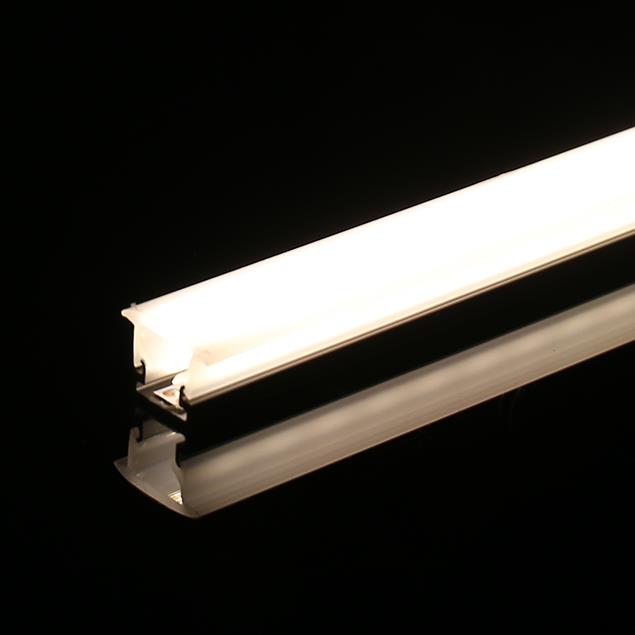

There are two diffuser options available: milky white PC cover and black PC cover. The specially designed PC diffuser conceals the profile edges and provides smooth, soft and uniform light distribution without visible LED dots. The profile is designed for downward illumination without a baffle, creating a clean and comfortable lighting effect.

The inner width is 5mm, allowing for a maximum led strip light width of 5mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.

Specifications

Model AH1510
Size W15*H10mm
Product Type Surface Mounted aluminum profile
Profile Material 6063-T5 extruded aluminum
Surface Finish Anodized Silver/black/powder coating black
Profile Length 2m, 2.5m, 3m and customized length
Inner Width 5mm
Maximum LED Strip Width 5mm
Diffusers Silicon

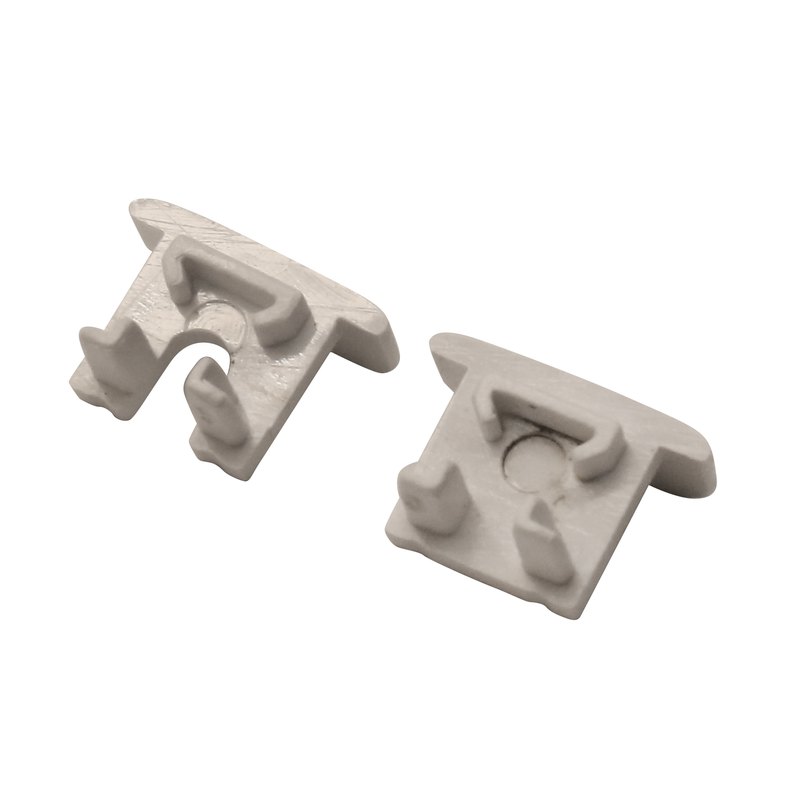

Accessories End caps with/without wire holes included, metal mounting clips included
Installation Surface Mounted
Applications kitchen cabinets, wardrobes, display cabinets and furniture lighting.
Certifications CE, RoHS
Warranty 5 years

FAQ

What’s the length in stock?

We keep 2m, 3m in stock. We can do max. 6meters.

Can you do customized design?

Yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.

Can we have the aluminum channel in other colors?

Yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.

Does your company assemble the led strips and drivers?

Yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.

What is the delivery time?

3-7 days for small order, 15-30 days for volume order.

What’s your MOQ?

3-7 days for small order, 15-30 days for volume order.

Do you provide free samples?

Yes, we provide free samples in short pieces.
