AD1722 Surface Mounted LED Aluminum Profile with Versatile Applications and Easy Magnetic Installation

AD1722 is a compact anodized aluminum LED profile designed for surface-mounted installations on walls, bookshelves, cabinets, furniture, and metal shelves. Featuring a slim, low-profile design, it provides elegant and space-saving lighting while the diffuser helps reduce glare for comfortable illumination. Available with end caps, mounting clips, and magnetic accessories for flexible installation options. Easy to install and suitable for a variety of indoor lighting applications.

Product Details

The AD1722 surface mounted LED aluminum profile is designed for sleek and versatile linear lighting installations. With its compact size and slim design, it is ideal for a variety of applications, including walls, bookshelves, cabinets, furniture, metal shelves and other interior spaces.

The LED channel is made from high-quality anodized aluminum, providing excellent durability and a clean, elegant finish. Its small width and height make it a perfect choice for installations where a discreet and space-saving lighting solution is required.

The profile features a glare-reducing diffuser that ensures soft and comfortable light distribution. It is designed for easy magnetic installation, making the mounting process quick, convenient and secure.

The inner width is 13mm, allowing for a maximum led strip light width of 13mm, we recommend using our high-density SMD or COB led strip light to deliver lighting evenly without lighting dots.

Specifications

Model AD1722
Size (W*H) W17*H22mm
Product type Surface-mounted aluminum profile
Profile material 6063-T5 extruded aluminum
Surface finish Anodized Silver/black/powder coating black
Profile length 2m, 2.5m, 3m and customized length
Inner width 13mm
Max width of strip lights 13 mm
Diffusers PMMA opal/frosted/clear/PC diffused

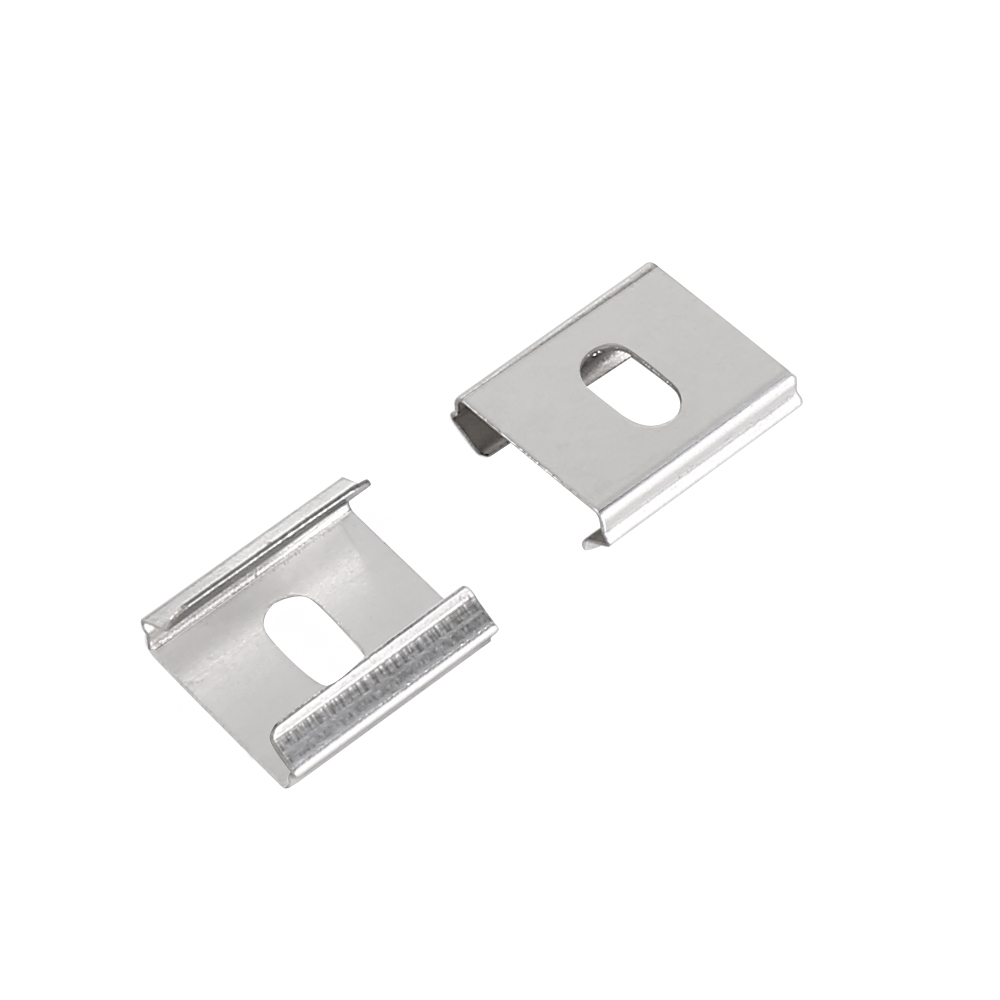

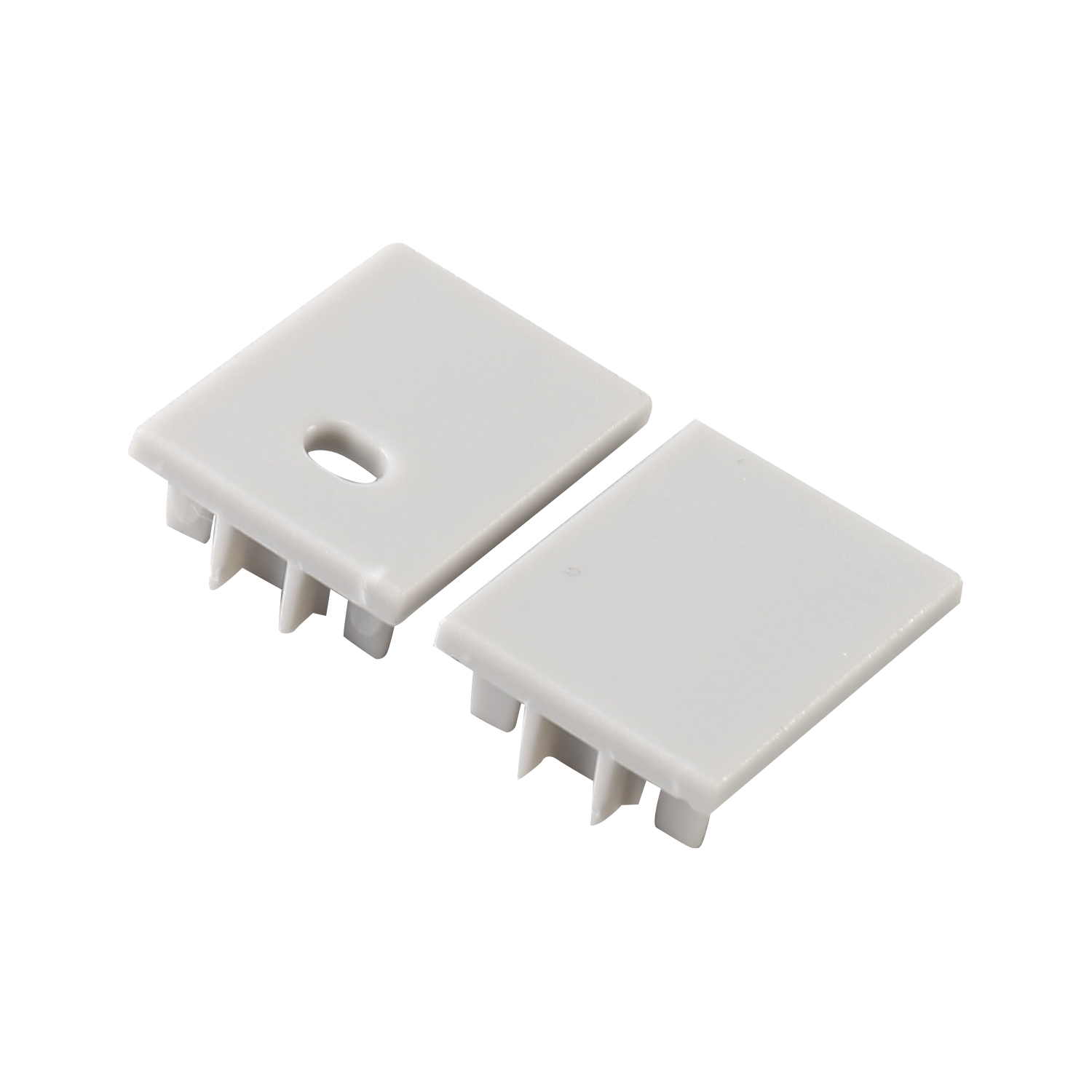

End caps with/without wire holes included, metal mounting clips included
Installation Surface-mounted
Application walls, bookshelves, cabinets, furniture, metal shelves and other interior spaces.
Certifications CE, RoHS
Warranty 5 years

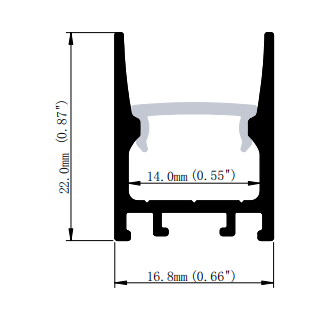

Product Drawings

AD1722 LED aluminum profile detail image 1

AD1722 LED aluminum profile detail image 2

AD1722 LED aluminum profile detail image 3

FAQ

what’s the length in stock?

we keep 2m, 3m in stock. We can do max. 6meters.

Can you do customized design?

yes, we have in-house tooling center to support customized design for aluminum profile, diffuser, endcaps and clips.

Can we have the aluminum channel in other colors?

yes, we have black/white colors available, other colors like gold/champagne/bronze/grey colors can be customized.

Does your company assemble the led strips and drivers?

yes, we have SMT line, it’s easy for us to assemble the led light strip to our aluminum profile.

what is the delivery time?

3-7 days for small order, 15-30 days for volume order.

What’s your MOQ?

3-7 days for small order, 15-30 days for volume order.

Do you provide free samples?

yes, we provide free samples in short pieces.
